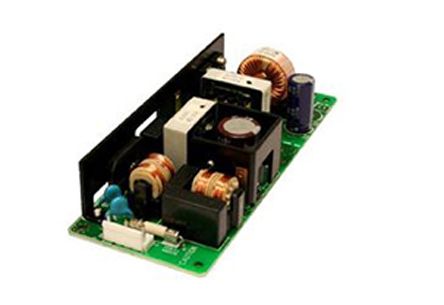

The TDK Corporation ZWS75BAF-24/A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a nominal output voltage of 24V and a maximum output current of 3.2A, providing a total power of 75W.
Key electrical specifications include a wide input voltage range of 85-265VAC or 120-370VDC, an efficiency of 87%, and features such as adjustable output, power factor correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with convection cooling, and it meets various conducted and radiated emission standards including EN55011/EN55032-B, FCC-B, and VCCI-B.
This converter is chassis mountable and has dimensions of 50mm x 26mm x 132mm. It also meets several safety approvals, including CE, UL62368-1, CSA62368-1, and EN62368-1. The unit is designed to meet IEC61000-6-2 and other EMC standards.
85-265VAC or 120-370VDC.
24V nominal, adjustable from 21.6 to 26.4V.
-10°C to +70°C with derating above 50°C.
Chassis mount, open frame.
87%.
Over current protection (hiccup, auto recovery) and over voltage protection (manual reset).
3kVAC input-output, 2kVAC input-FG, 500VAC output-FG.
