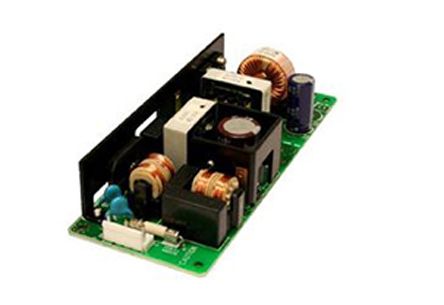

The TDK Corporation ZWS75BAF-12/A is an enclosed AC DC converter designed for ITE (Commercial) applications. It offers a nominal output voltage of 12V and a maximum output current of 6.3A, delivering up to 75W of power.
Key electrical specifications include an input voltage range of 85-265VAC or 120-370VDC, and an efficiency of 85%. The converter operates within a temperature range of -10°C to 70°C (with derating) and features over-current and over-voltage protection.
Designed for chassis mounting, this unit measures 150mm x 50mm x 33mm. It meets conducted and radiated emission standards including EN55011/EN55032-B, FCC-B, and VCCI-B, and complies with EMC standards like IEC61000-6-2.
Environmental compliance includes RoHS3, REACH Unaffected, and MSL 1. The TDK Corporation ZWS75BAF-12/A is suitable for various industrial and commercial applications requiring a reliable power supply.
85-265VAC or 120-370VDC.
12V at up to 6.3A.
-10°C to +70°C with derating above +50°C.
Enclosed chassis mount package.
Over current protection (hiccup at 10.5A) and over voltage protection (3.79-4.95V).
85% typical.
Input-output 3kVAC, input-FG 2kVAC, output-FG 500VAC.
