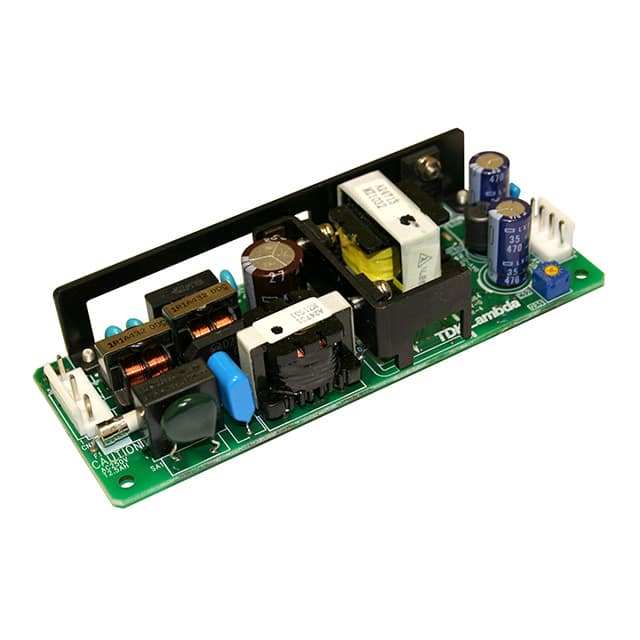

The TDK Corporation ZWS50BAF-5/A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a nominal output voltage of 5V and a maximum output current of 10A, delivering up to 50W of power. The unit operates with a wide input voltage range of 85-265VAC and features adjustable output, Power Factor Correction (PFC), and universal input capabilities.
This converter is chassis mounted and has dimensions of 132.0mm x 50.0mm x 26.0mm. It operates within a temperature range of -10°C to +70°C with convection cooling. The ZWS50BAF-5/A is designed to meet various EMC standards, including EN55011/EN55032-B, FCC-B, and VCCI-B for conducted and radiated emissions.
Key electrical specifications include a typical efficiency of 84%, a hold-up time of 20ms, and over-current and over-voltage protection features. Isolation ratings include 2kVAC for Input-FG, 3kVAC for Input-Output, and 500VAC for Output-FG.
The nominal output voltage is 5V.
The maximum output current is 10A.
The maximum output power is 50W.
The input voltage range is 85 - 265VAC.
The operating temperature range is -10°C to +70°C.
This converter uses chassis mount.
