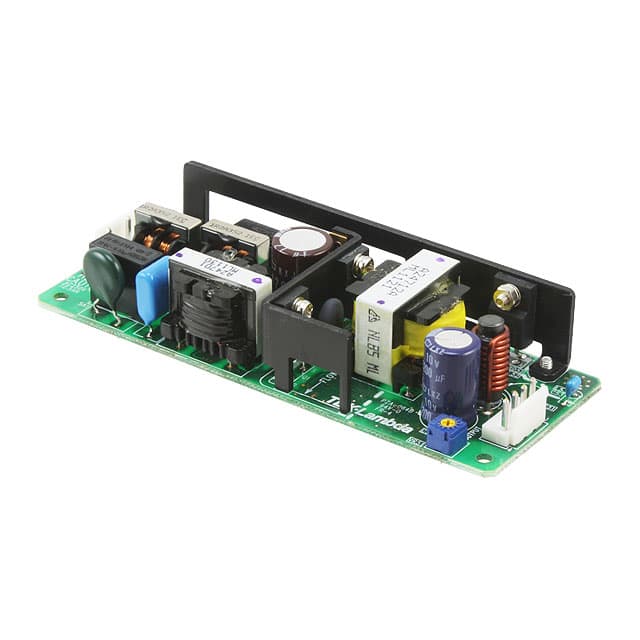

The TDK Corporation ZWS50BAF-3 is an open-frame AC/DC converter designed for chassis mounting. It delivers up to 50W of power with a nominal output voltage of 3.3V and a maximum output current of 10A. The converter operates within a wide input voltage range of 85-265VAC and features a power factor correction (PFC) design.
Key electrical specifications include a maximum ripple and noise of 120mV at 70°C, line regulation of 20mV, and load regulation of 40mV. It offers over-current protection with automatic recovery and over-voltage protection that requires a manual reset. The operating temperature range is -10°C to +70°C with derating, and it utilizes convection cooling.
This AC/DC converter is suitable for ITE (Commercial) applications and is approved by CE. It measures 132.0mm x 50.0mm x 26.0mm and weighs approximately 165g. The unit is designed to meet various emission standards, including EN55011/EN55032-B, FCC-B, and VCCI-B.
The nominal output voltage is 3.3V.
The maximum output power is 50W.
The input voltage range is 85 - 265VAC.
The ZWS50BAF-3 uses convection cooling.
The operating temperature range is -10°C to +70°C with derating.
The dimensions are 50mm x 26mm x 132mm.
Yes, it has over-current protection with automatic recovery.
