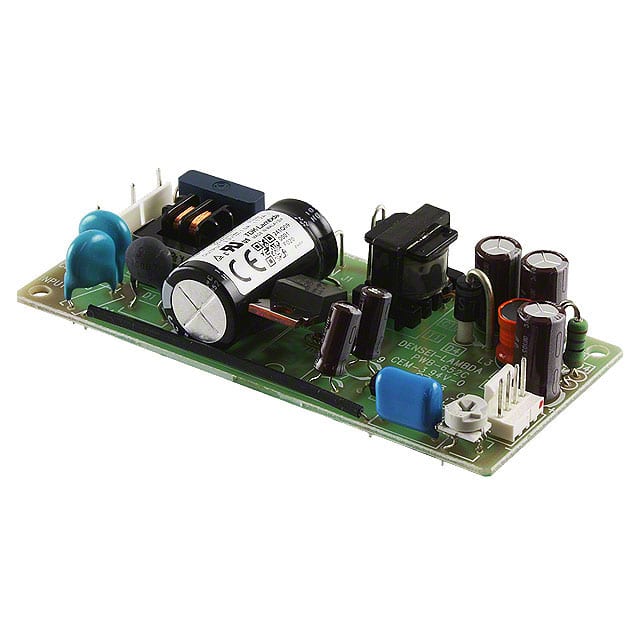

The TDK Corporation ZWS5-15 is a versatile AC/DC converter designed for various applications. This open-frame unit delivers 5W of power with a single 15V output at 0.34A.
Key electrical specifications include a universal input voltage range of 85-265 VAC, an efficiency of 68%, and features such as adjustable output, DC input capability, load sharing, and Power Factor Correction (PFC). The operating temperature range is -10°C to 60°C with derating.
Mechanically, the converter is designed for chassis mounting and has dimensions of 98.0mm x 44.9mm x 21.0mm. It meets safety agency approvals including CE, cURus, and TUV, and complies with EMC standards like EN55022-B and FCC Class B.
Environmental compliance includes RoHS3 status. The unit is suitable for ITE (Commercial) applications.
The AC input range is 85-265VAC (47-440Hz) and the DC input range is 110-330VDC.
The single output is 15V at 0.34A (5W).
The operating temperature range is -10°C to 60°C with derating.
It is designed for chassis mount installation.
The converter includes overcurrent protection at ~125% and overvoltage diode clamp at ~140V.
Typical efficiency is 68%.
It is certified to CE, cURus, and TUV standards.
