| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

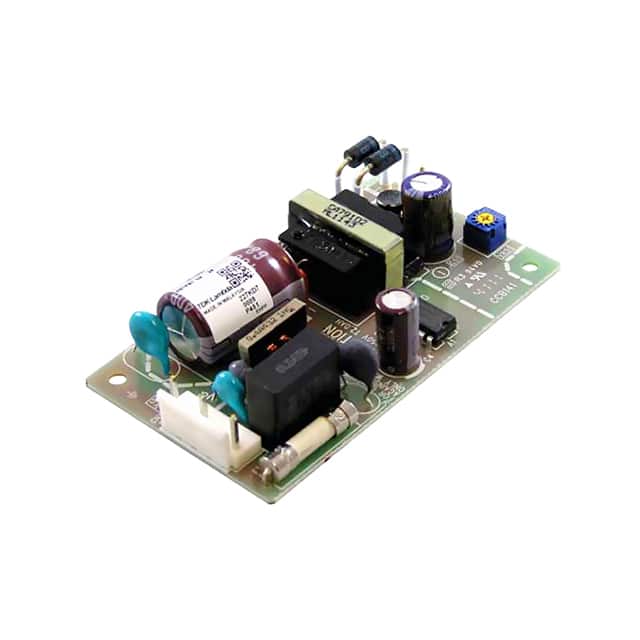

The TDK Corporation ZWS30B-3 is a versatile 30W AC/DC power supply converter designed for ITE (Commercial) applications. It provides a single output with a maximum current of 6.3A and a power rating of 30W.
This converter features an open frame construction and is designed for chassis mounting. Key features include adjustable output, DC input capability, load sharing, Power Factor Correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating.
With dimensions of 133.0mm x 55.1mm x 25.9mm, it offers a compact solution for various electronic systems. The unit is CE approved and boasts an efficiency of 75%.
The ZWS30B-3 provides a single output of 3.3V at 6.3A.
The ZWS30B-3 is rated for 30W output power.
The ZWS30B-3 has an efficiency of 75%.
The ZWS30B-3 operates from -10°C to 70°C with derating.
The ZWS30B-3 is designed for chassis mounting.
The ZWS30B-3 provides 3kV isolation voltage.
The ZWS30B-3 features adjustable output, DC input capability, load sharing, PFC, and universal input.
