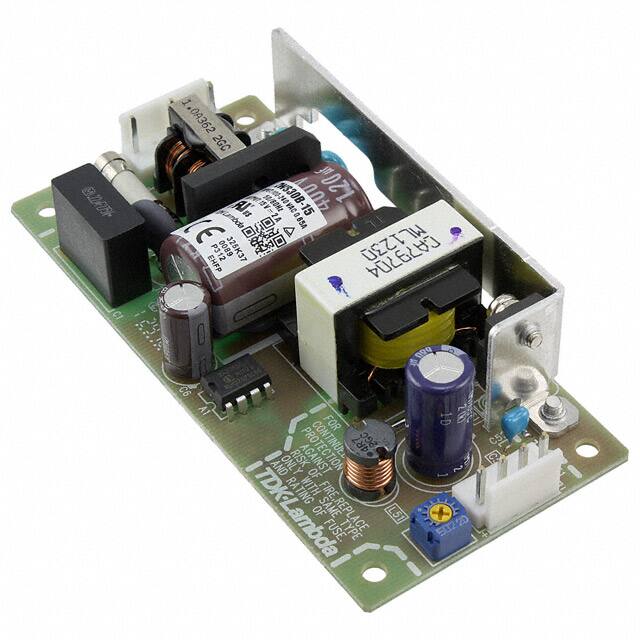

The TDK Corporation ZWS30B-15 is a 30W switching power supply designed for AC/DC conversion. It provides a stable 15V dc output at 2A, making it suitable for various industrial applications.
Key electrical specifications include an input voltage range of 85V ac to 370V ac and an efficiency of 86%. The unit has a single output and is designed for chassis mounting. Its operating temperature range is -10°C to 70°C.
This power supply is part of the ZWS-B series, known for being 30% smaller than previous generations and suitable for green products. It features adjustable output, DC input capability, load sharing, PFC, and universal input. The compact dimensions of 105mm x 26mm x 26mm and a weight of 105g facilitate integration into space-constrained designs.
The output voltage is 15V dc.
The maximum output current is 2A.
The power rating is 30W.
The input voltage range is 85V ac to 370V ac.
The operating temperature range is -10°C to 70°C.
It is designed for chassis mounting.
