ZWS300BAF-36/T
TDK Corporation

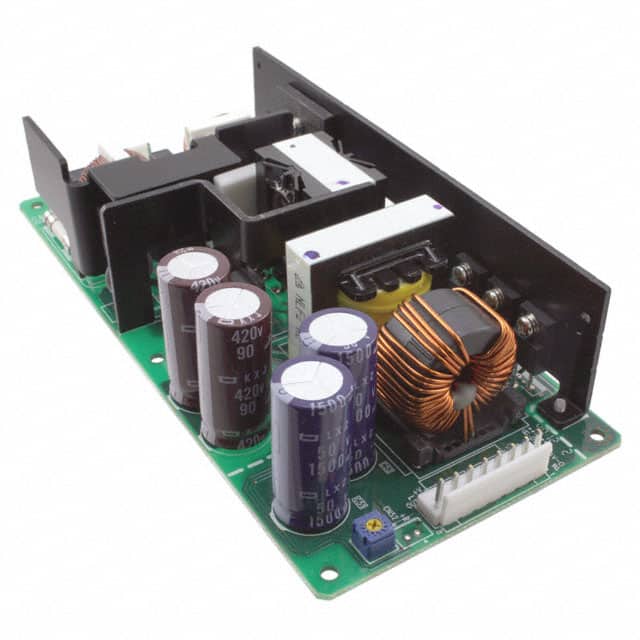

The TDK Corporation ZWS300BAF-36/T is an open frame AC/DC converter with a 300W power rating and 36V output. It is designed for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |
The ZWS300BAF-36 is an open-frame AC/DC converter from TDK Corporation, delivering 300W of output power (336W with forced air) from a single 36V output. It operates with an efficiency of 88% and accepts a universal input, making it suitable for a range of commercial ITE applications.
This converter is chassis-mountable and measures 180.0mm x 84.0mm x 42.0mm. It includes features such as adjustable output, DC input capability, load sharing, and power factor correction (PFC). The operating temperature range is -10°C to 70°C with derating.
The ZWS300BAF-36 is designed for commercial ITE (Information Technology Equipment) applications, providing reliable power conversion in a compact form factor. Its approvals include CE, cURus, and TUV, and it is RoHS3 compliant.
The ZWS300BAF-36 provides a single output of 36V at 8.4A.
The ZWS300BAF-36 is rated for 300W, with 336W available with forced air cooling.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 88%.
The ZWS300BAF-36 is designed for chassis mounting.
The dimensions are 180.0mm (length) x 84.0mm (width) x 42.0mm (height).
The ZWS300BAF-36 is approved by CE, cURus, and TUV.
