| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

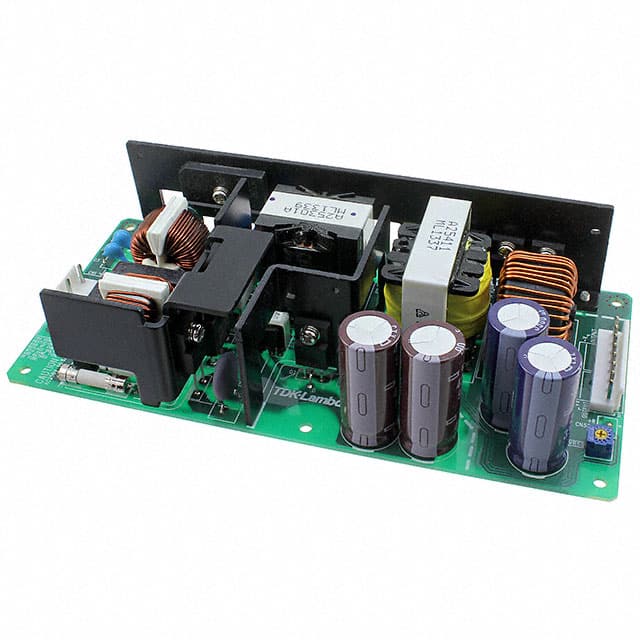

The TDK Corporation ZWS300BAF-15 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 300W, with a peak of 336W under forced air conditions, and delivers 20A of current.
This converter features a chassis mount and operates with an efficiency of 89%. Key features include adjustable output, DC input capability, load sharing, power factor correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating.
With dimensions of 180.0mm x 84.0mm x 42.0mm, the ZWS300BAF-15 is suitable for integration into various systems. It has undergone approvals from CE, cURus, and TUV, indicating compliance with relevant safety standards.
The operating temperature range is -10°C to 70°C with derating.
15V.
20A.
300W (336W forced air).
Chassis mount.
89%.
Adjustable output, DC input capable, load sharing, PFC, universal input.
