| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

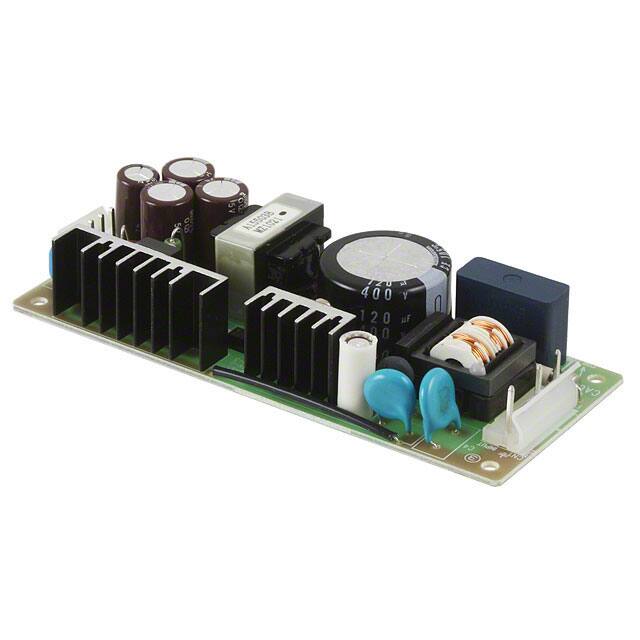

The TDK Corporation ZWS30-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 30W output power with a 24V nominal voltage and a maximum current of 1.3A.
Key features include universal AC input (85-265VAC), DC input capability, adjustable output, load sharing, and Power Factor Correction (PFC). The unit operates within a temperature range of -10°C to +60°C, with derating applied at higher temperatures. It is designed for chassis mounting and offers a 2-year warranty.
This converter meets various safety and EMC standards, including UL60950-1, CSA60950-1, EN60950-1, and CE Mark, with conducted and radiated emissions compliant to EN55022-B, FCC Class B, and VCCI-B.
Dimensions are 133.0mm x 55.1mm x 25.9mm. The product is RoHS3 compliant, has an MSL of 1, and is REACH unaffected.
The output voltage is 24V.
The maximum output current is 1.3 A.
The power rating is 30W.
The operating temperature range is -10°C to +60°C for open frame configurations.
The ZWS30-24 is RoHS3 Compliant.
