| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

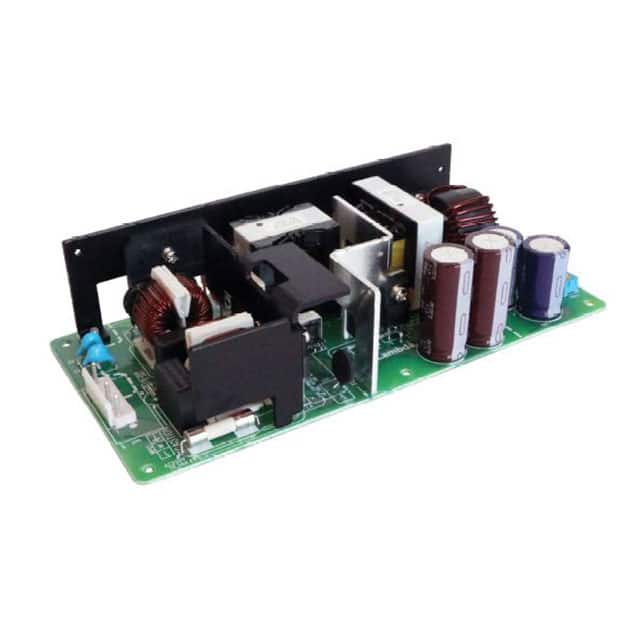

The TDK Corporation ZWS240RC-24 is an open frame AC/DC converter designed for commercial ITE applications. It delivers 240W of continuous output power at a nominal 24V DC, with a rated current of 10A. The converter achieves a typical efficiency of 90%, contributing to reduced thermal management requirements.
This unit features a chassis-mountable open frame package measuring 180mm x 84mm x 42mm. It includes adjustable output voltage and universal input capabilities, with a 3kV input-to-output isolation rating. The operating temperature range is -10°C to 70°C with derating, enabling use in a variety of environments.
The ZWS240RC-24 is approved to CE standards and is suitable for use in commercial information technology equipment. Its compact form factor and high efficiency make it a reliable choice for embedded power systems.
24V DC.
Open frame, chassis mount.
-10°C to 70°C with derating.
90%.
3 kV.
1 output.
180mm x 84mm x 42mm.
