| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

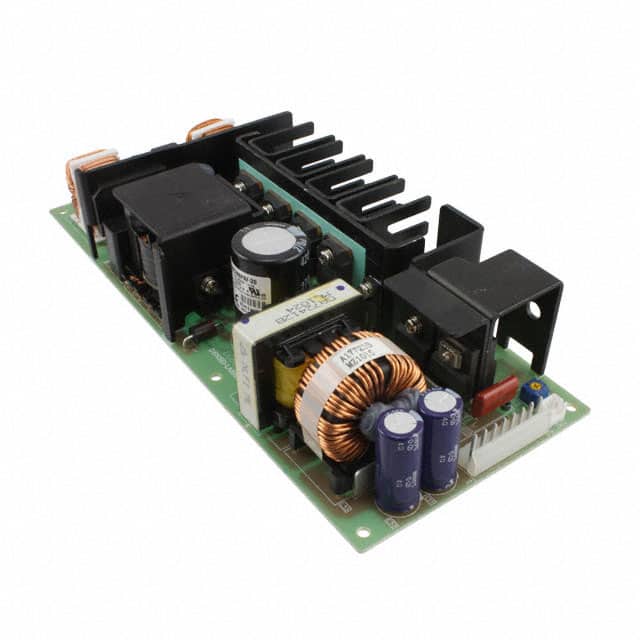

The TDK Corporation ZWS240PAF-36 is an open frame AC/DC converter designed for chassis mounting. It offers a 36V output voltage and a power rating of 240W, with an output current of 6.7A.
Key electrical specifications include a universal input voltage range of 85-265 VAC, power factor correction (0.99 typical at 100VAC), and an efficiency of 82%. The operating temperature range is -10°C to +70°C with derating.
This converter is suitable for ITE (Commercial) applications and meets various safety agency approvals including CE, UL60950-1, and CSA60950-1. It also complies with conducted and radiated EMI standards such as EN55022-B and FCC Class B.
Mechanical dimensions are 222.0mm in length, 95.0mm in width, and 42.0mm in height. The unit comes with a 2-year warranty.
85-265VAC (47-63Hz) or 120-370VDC.
36V at 6.7A, 240W.
82%.
-10°C to +70°C with derating (open frame) or -10°C to +60°C with cover.
222.0mm x 95.0mm x 42.0mm, weight 750g (without cover) or 1100g (with cover).
UL60950-1, CSA60950-1, EN60950-1, EN50178.
2 years.
