ZWS240BP-24/JL
TDK Corporation

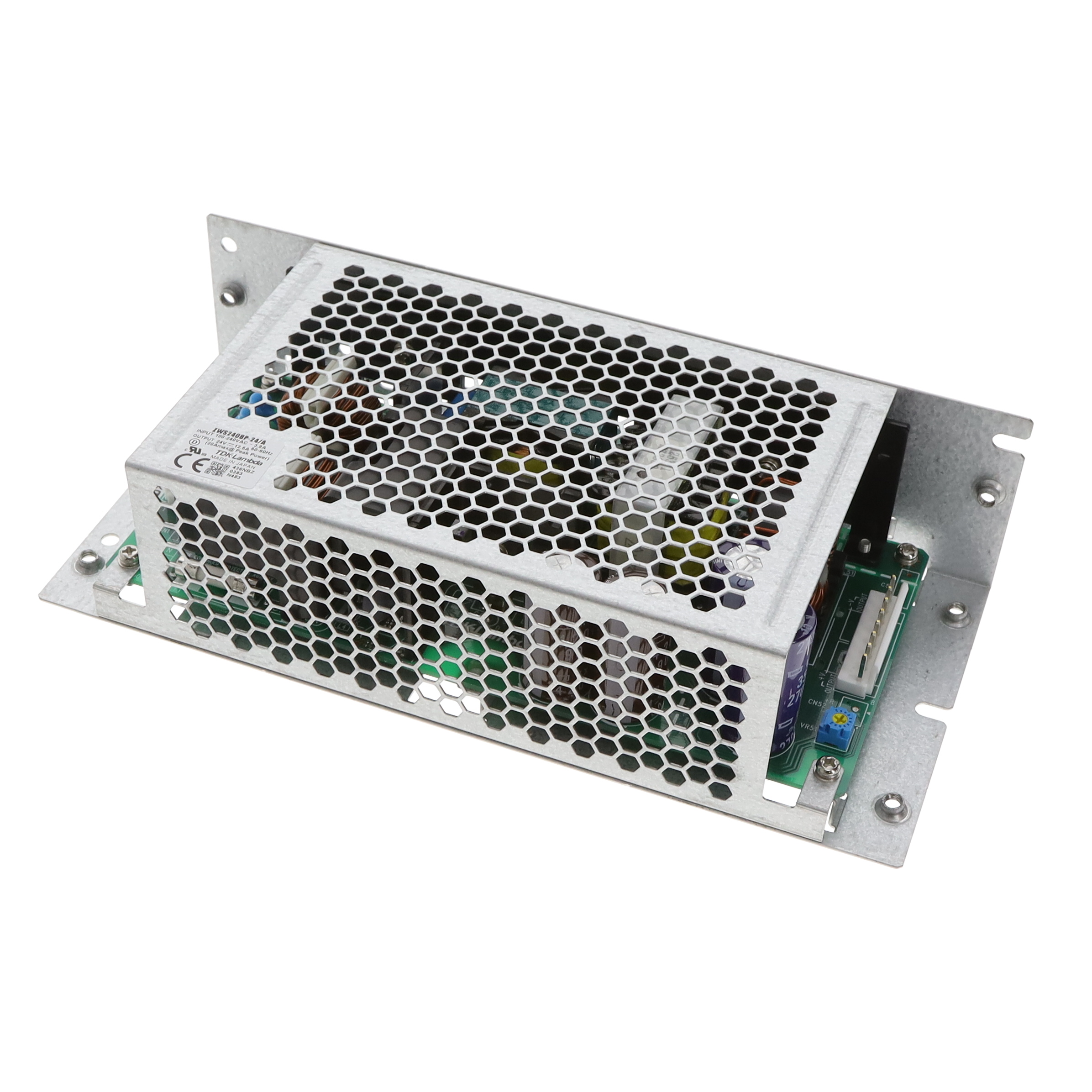

The TDK Corporation ZWS240BP-24/JL is an enclosed AC/DC converter delivering 240W of power at 24V with 10A current. It features 88% efficiency and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
The TDK Corporation ZWS240BP-24/A is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single output of 24V at 10A, delivering a total power of 240W.
Key electrical specifications include a wide input voltage range of 85 to 265 VAC and an efficiency of 88%. The converter offers an isolation voltage of 3 kV and features such as adjustable output, DC input capability, load sharing, and PFC.
Mechanically, the unit measures 180.0mm in length, 84.0mm in width, and 42.0mm in height, suitable for chassis mounting. The operating temperature range is -10°C to 70°C with derating.
Compliance includes RoHS3, MSL Level 1, and CE approval.
The output voltage is 24V.
The maximum output current is 10A.
The power rating is 240W.
The input voltage range is 85 to 265 VAC.
The operating temperature range is -10°C to 70°C (With Derating).
The dimensions are 180.0mm x 84.0mm x 42.0mm.
The product is RoHS3 Compliant.
