| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

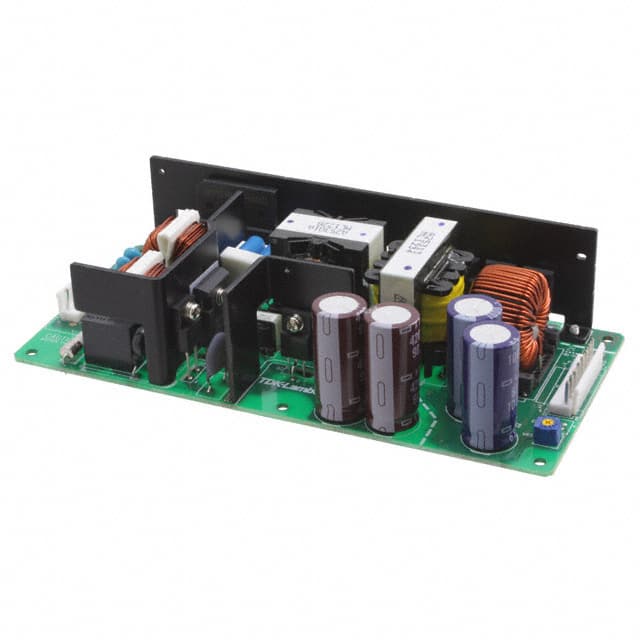

The TDK Corporation ZWS240BP-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 24V output with a maximum current of 10A, delivering up to 240W of power.
This converter features adjustable output, DC input capability, load sharing, Power Factor Correction (PFC), and universal input. It operates within a temperature range of -10°C to 70°C with derating and offers an isolation voltage of 3 kV. The unit is designed for chassis mounting and has dimensions of 180.0mm x 84.0mm x 42.0mm.
Key specifications include 88% efficiency and compliance with CE approval agency standards. The RoHS status is listed as RoHS3 Compliant, Moisture Sensitivity Level (MSL) is 1 Unlimited, and REACH Status is Unaffected. Note that compliance data is currently unverified.
24V DC.
10 A.
240 W.
88%.
-10°C to 70°C with derating.
3 kV.
Adjustable output, DC input capable, load sharing, PFC, universal input.
