| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

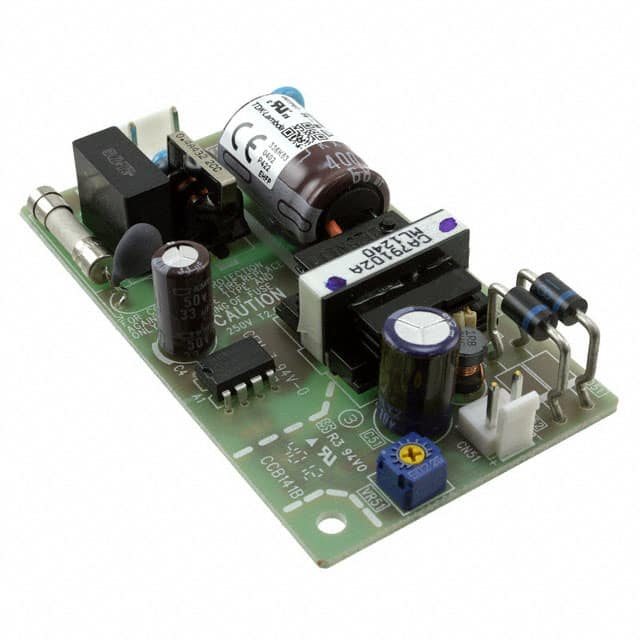

The TDK Corporation ZWS15B-5 is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers 15W of power with a 3A current output and a voltage of 3 kV isolation.
This converter features a chassis mount type and operates with an efficiency of 77%. Key features include adjustable output, DC input capability, load sharing, Power Factor Correction (PFC), and universal input. The operating temperature range is -10°C to 70°C with derating.
Dimensions are 125.2mm in length, 50.0mm in width, and 21.0mm in height. It has a single output and is CE approved. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
The TDK Corporation ZWS15B-5 has a power output of 15W.
The current rating for the ZWS15B-5 is 3 A.
The operating temperature range is -10°C to 70°C (With Derating).
The ZWS15B-5 uses chassis mount.
Yes, the ZWS15B-5 is RoHS3 Compliant.
