| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight | |
| Width |

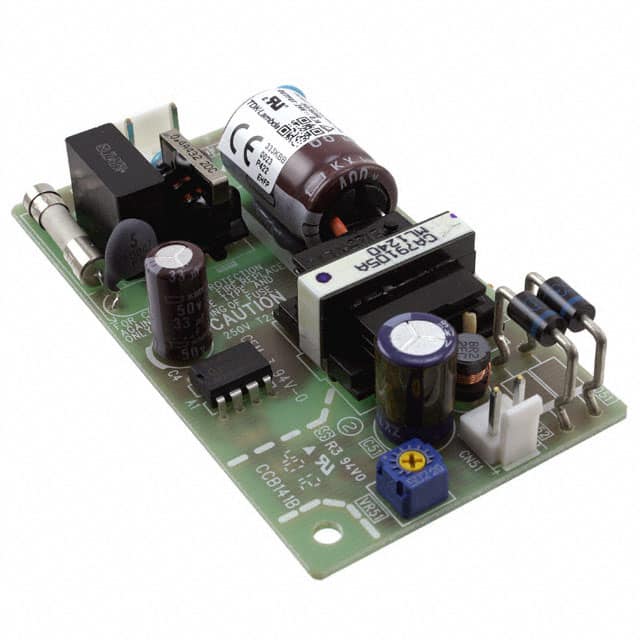

The TDK Corporation ZWS15B-24 is a reliable AC/DC converter designed for ITE (Commercial) applications. This open-frame power supply delivers a stable 24V DC output at 700mA, providing a total power of 16.8W. It operates with an efficiency of up to 85% and accepts a wide input voltage range from 85V AC to 265V AC.
Designed for easy integration, the ZWS15B-24 features a chassis mount type and compact dimensions of 125.2mm x 50.0mm x 21.0mm. It is built to withstand operating temperatures from -10°C to 70°C with derating. The converter includes features such as adjustable output, DC input capability, load sharing, PFC, and universal input, making it a versatile solution for various electronic designs.
This series is known for its reliability and suitability for green products, with a no-load input power of less than 0.5W. It meets various industry standards and approvals, including CE, EN 55011, and IEC/UL/CSA/EN 62368-1.
The TDK Corporation ZWS15B-24 provides a 24V dc output voltage.
The maximum output current for the ZWS15B-24 is 700mA.
The TDK Corporation ZWS15B-24 has a power rating of 16.8W.
The ZWS15B-24 accepts an input voltage range of 85V ac to 265V ac.
The operating temperature range for the ZWS15B-24 is -10°C to 70°C.
The ZWS15B-24 is designed for chassis mounting.
The dimensions of the ZWS15B-24 are 125.2mm in length, 50.0mm in width, and 21.0mm in height.
