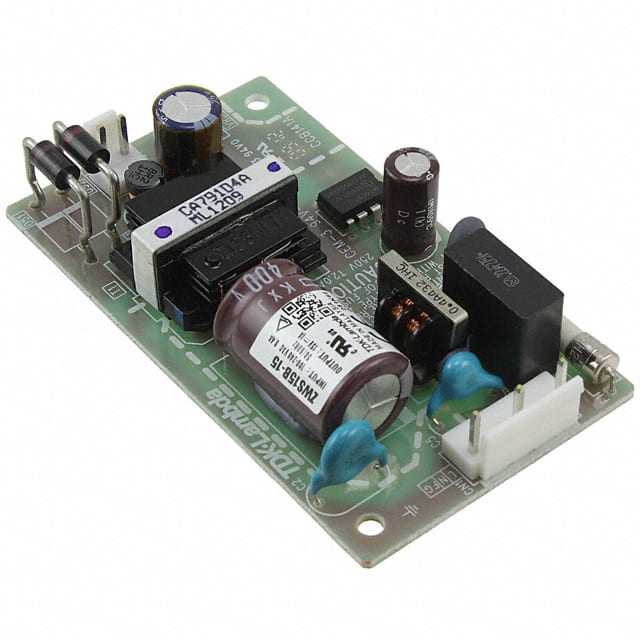

The TDK Corporation ZWS15B-15 is a 15W AC DC switching power supply designed for reliable performance in commercial ITE applications. It provides a single 15V dc output at 1A.
This power supply operates with a wide input voltage range of 85V ac to 265V ac and can also accept DC input. It offers an efficiency of up to 84% and features like adjustable output, load sharing, and power factor correction (PFC). The operating temperature range is -10°C to 70°C.
Designed for chassis mounting, the ZWS15B-15 has compact dimensions of 87.5mm x 22mm x 22mm. It meets various safety and EMC standards including CE, FCC Class B, and EN 62368-1, ensuring suitability for diverse industrial and commercial equipment.
The ZWS-B series, to which this model belongs, is known for being 30% smaller than previous generations and offers a low no-load input power of less than 0.5W, making it suitable for green product designs.
The output voltage is 15V dc.
85-265V ac or 85-370V dc.
-10°C to +70°C (with derating).
Chassis mount.
Manufacturer specifies 87.5 x 22 x 22 mm and 55g weight.
84% according to manufacturer data.
EN 55022-B, EN 61000-4 series, FCC Class B, CE, IEC/UL/CSA/EN 62368-1, VCCI-B, and more.
