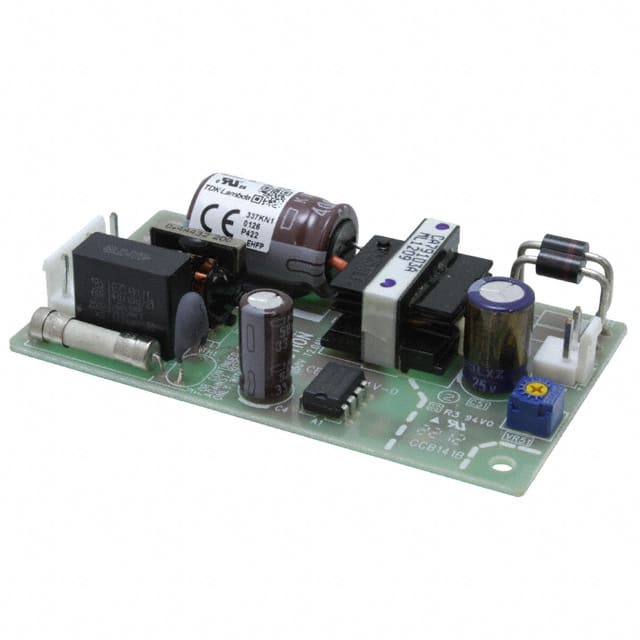

ZWS15B-12 The TDK Corporation ZWS15B-12 is an open frame AC/DC converter with a 15W output power and 1.3A current. It features chassis mount and universal input.
Mfr Part #:

ZWS15B-12

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation ZWS15B-12 is an open frame AC/DC converter with a 15W output power and 1.3A current. It features chassis mount and universal input.
Stock on Request

ZWS15B-12 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Height
Length
Mounting Type
Number of Outputs
Operating Temperature
Power (Watts)
Type
Voltage
Width
View Similar Products (0)

ZWS15B-12 Description

Short technical summary and product information.

The TDK Corporation ZWS15B-12 is an open frame AC/DC converter designed for ITE (Commercial) applications. It provides a 15W output power and a maximum current of 1.3A.



Key electrical specifications include an 80% efficiency and universal input capability. The converter also features adjustable output, DC input capability, load sharing, and Power Factor Correction (PFC). It is designed for chassis mounting and has dimensions of 125.2mm x 50.0mm x 21.0mm.



The operating temperature range is -10°C to 70°C with derating. The isolation voltage is rated at 3 kV. This model is RoHS3 compliant and has an MSL rating of 1.

ZWS15B-12 Quick Information

Product Type: AC DC Converter
Series: ZWS15B
Canonical Name: TDK Corporation ZWS15B-12 AC/DC Converter
Subcategory: Open Frame

ZWS15B-12 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZWS15B-12 Features

  • 15W output power and 1.3A current.
  • Open frame design for easy integration.
  • Chassis mount for secure installation.
  • Features adjustable output and PFC.
  • Operates from -10°C to 70°C.

ZWS15B-12 Applications

  • Suitable for ITE (Commercial) applications.
  • Ideal for systems requiring universal input.
  • Used in designs needing load sharing.
  • Supports DC input capability.

ZWS15B-12 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating temperature range?

-10°C to 70°C with derating.

What is the output power?

15W.

What is the output current?

1.3A.

What is the efficiency?

80%.

What is the isolation voltage?

3 kV.

What are the dimensions?

125.2mm x 50.0mm x 21.0mm.

What mounting type does it use?

Chassis mount.
