| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

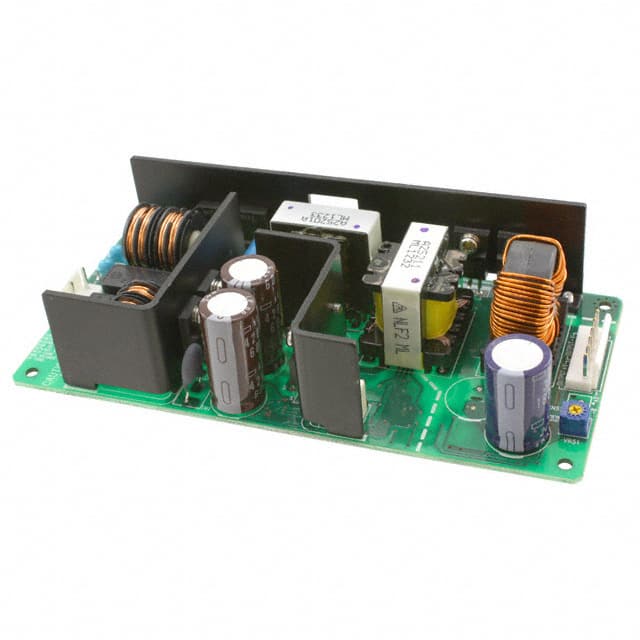

This TDK Corporation ZWS150BP-48 is an AC/DC converter with a power rating of 150W and an output voltage of 48V at 3.2A. It is designed as an open frame unit for chassis mounting.
Key electrical specifications include an efficiency of 87% and an isolation voltage of 3 kV. The converter supports features such as adjustable output, DC input capability, load sharing, Power Factor Correction (PFC), and universal input. It operates within a temperature range of -10°C to 70°C with derating.
Applications for this converter are primarily in ITE (Commercial) equipment. It has received CE approval. The physical dimensions are 160.0mm in length, 75.0mm in width, and 37.0mm in height.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. The part number for TDK is 285-ZWS150BP-48-ND.
The output voltage is 48V.
The maximum current is 3.2 A.
The power rating is 150W.
The operating temperature range is -10°C to 70°C with derating.
This AC DC converter uses chassis mount.
