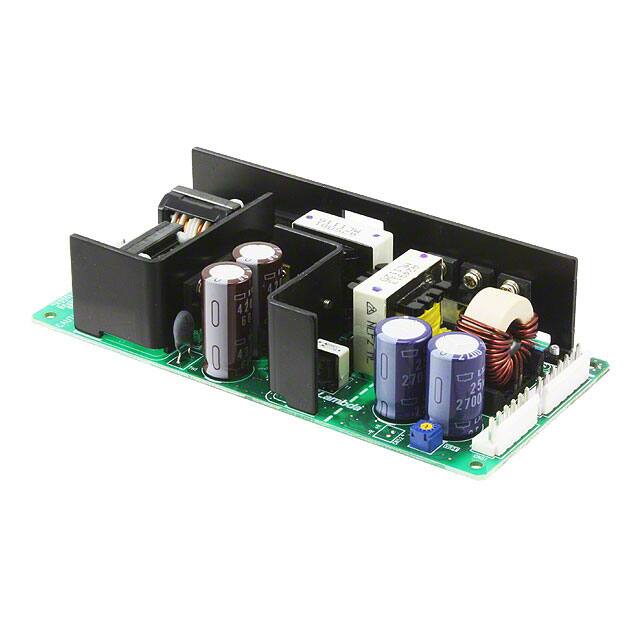

The TDK Corporation ZWS150BAF-48 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a nominal output voltage of 48V and a maximum output current of 3.2A, delivering up to 150W of power.
Key electrical specifications include a wide input voltage range of 85-265VAC, an efficiency of 89%, and features such as adjustable output, DC input capability, load sharing, and Power Factor Correction (PFC). The converter is designed to meet conducted and radiated emission standards including EN55011/EN55032-B, FCC-B, and VCCI-B.
Mechanically, this unit is designed for chassis mounting and has dimensions of 160.0mm x 75.0mm x 37.0mm. It operates within a temperature range of -10°C to 70°C with convection cooling and includes over-current and over-voltage protection.
Compliance includes CE approval. The operating humidity range is 30-90% RH (non-condensing), and storage conditions are -30°C to +75°C.
The nominal output voltage is 48V.
The maximum output current is 3.2A.
The input voltage range is 85 - 265VAC.
The dimensions are 160.0mm x 75.0mm x 37.0mm.
The operating temperature range is -10°C to +70°C.
Yes, it has over-current protection with a minimum threshold of 1.15A.
It uses chassis mount.
