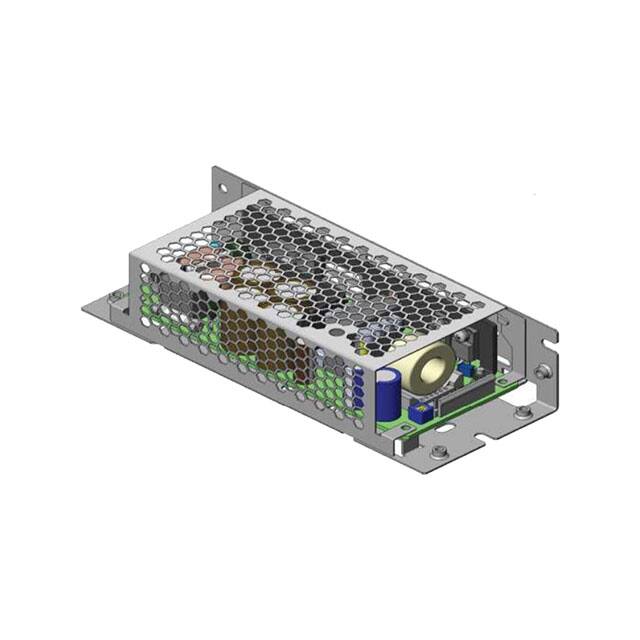

ZWS150BAF-12/A The TDK Corporation ZWS150BAF-12/A is an enclosed AC/DC converter with a 12V, 150W output. It features adjustable output, PFC, and universal input capabilities.
Mfr Part #:

ZWS150BAF-12/A

Mfr Name: TDK Corporation
TDK Corporation
The TDK Corporation ZWS150BAF-12/A is an enclosed AC/DC converter with a 12V, 150W output. It features adjustable output, PFC, and universal input capabilities.
Stock on Request

ZWS150BAF-12/A Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Approval Agency
Current
Efficiency
Features
Mounting Type
Number of Outputs
Operating Temperature
Output Voltage
Power (Watts)
Storage Temperature
Temperature Coefficient
Type
Voltage

ZWS150BAF-12/A Description

Short technical summary and product information.

The TDK Corporation ZWS150BAF-12/A is a 150W enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a nominal 12V output with a maximum current of 12.5A.



Key electrical specifications include an input voltage range of 85-265VAC, an efficiency of 85%, and features such as adjustable output, Power Factor Correction (PFC), and universal input. The unit offers over-current protection and over-voltage protection for reliable operation.



Mechanically, this power supply is designed for chassis mounting and has dimensions of 160.0mm x 75.0mm x 37.0mm. It operates within a temperature range of -10°C to +70°C with derating and uses convection cooling. The isolation voltage between input and output is rated at 3kVAC.



Compliance includes CE approval. The product is listed with RoHS3 compliance, MSL 1, and REACH unaffected status, though these are noted as having low confidence.

ZWS150BAF-12/A Quick Information

Product Type: AC DC Converter
Series: ZWS
Canonical Name: TDK Corporation ZWS150BAF-12/A AC/DC Converter
Subcategory: AC DC Converters

ZWS150BAF-12/A Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZWS150BAF-12/A Features

  • 150W maximum output power.
  • 12V nominal output voltage.
  • 85-265VAC universal input range.
  • Chassis mountable enclosed type.
  • Features adjustable output and PFC.

ZWS150BAF-12/A Applications

  • Used in commercial ITE equipment power supplies.
  • Suitable for industrial control system power needs.
  • Ideal for test and measurement instrumentation power.
  • Applicable for telecommunications equipment power delivery.

ZWS150BAF-12/A FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TDK ZWS150BAF-12/A?

The nominal output voltage is 12V.

What is the maximum output power for the ZWS150BAF-12/A?

The maximum output power is 150W.

What is the input voltage range for this AC/DC converter?

The input voltage range is 85 - 265VAC.

What type of mounting is required for the ZWS150BAF-12/A?

This unit is designed for chassis mounting.

What is the operating temperature range?

The operating temperature range is -10°C to +70°C with derating.

Does the ZWS150BAF-12/A have over-current protection?

Yes, it features over-current protection with a minimum of 1.15A for the 12V output, operating in a hiccup mode with automatic recovery.

What are the key features of the ZWS150BAF-12/A?

Key features include adjustable output, Power Factor Correction (PFC), universal input, and an enclosed type.
