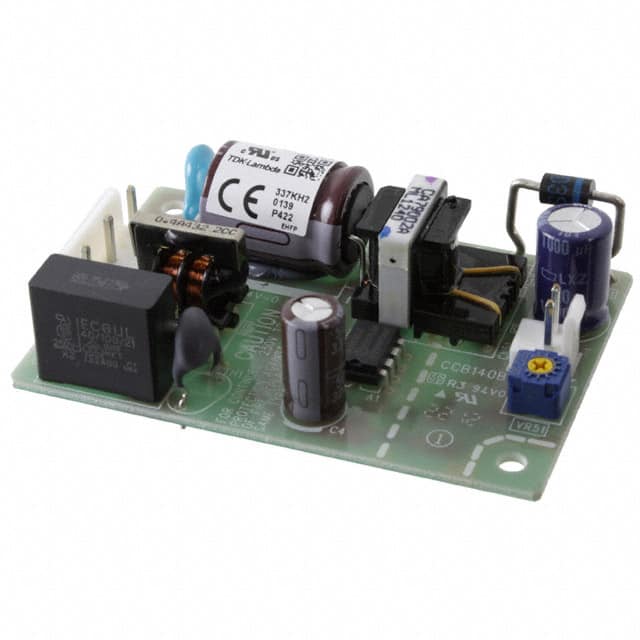

The TDK Corporation ZWS10B-5 is an open-frame AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 10W with a 2A current rating.
Key electrical specifications include a universal input capability and features such as adjustable output, DC input capability, load sharing, and Power Factor Correction (PFC). The converter operates within a temperature range of -10°C to 70°C with derating.
Mechanically, the ZWS10B-5 has dimensions of 105.1mm in length, 50.0mm in width, and 21.0mm in height. It is designed for chassis mounting. The unit has undergone CE approval.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status. The isolation voltage is rated at 3 kV.
The ZWS10B-5 operates from -10°C to 70°C with derating.
The output is 5V at 2A.
77%.
3 kV.
105.1mm x 50.0mm x 21.0mm.
Yes, PFC is included.
Chassis mount.
