Mfr Part #:

ZWS10B-24

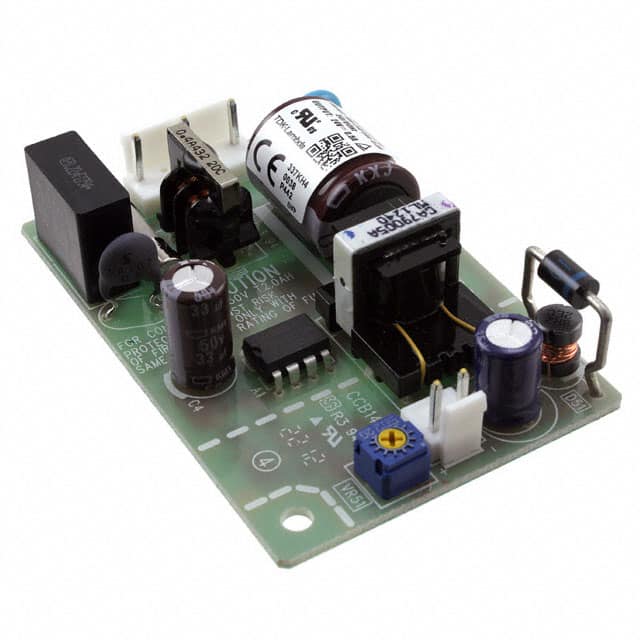

The TDK Corporation ZWS10B-24 is an open frame AC/DC converter providing 24V at 10W. It features adjustable output and universal input capabilities.

Stock on Request

ZWS10B-24 Description

Short technical summary and product information.

The TDK Corporation ZWS10B-24 is an open frame AC/DC converter designed for ITE (Commercial) applications. It delivers a stable 24V output with a maximum current of 500mA, providing a total power of 10W. The converter operates with an efficiency of 84% and features adjustable output, DC input capability, load sharing, PFC, and universal input.

With dimensions of 105.1mm x 50.0mm x 21.0mm, this chassis mountable unit is suitable for various integration needs. It operates within a temperature range of -10°C to 70°C with derating. The isolation voltage is rated at 3 kV, ensuring safety in operation. The ZWS10B-24 is RoHS3 compliant and meets REACH requirements.

ZWS10B-24 Quick Information

Product Type: AC DC Converter

Series: ZWS10B

Canonical Name: TDK Corporation ZWS10B-24 AC/DC Converter

Subcategory: AC DC Converters

ZWS10B-24 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ZWS10B-24 Features

10W AC/DC converter with 24V output.
Open frame, chassis mountable design.
Features adjustable output and universal input.
Operates from -10°C to 70°C with derating.
RoHS3 compliant for environmental standards.

ZWS10B-24 Applications

Suitable for ITE (Commercial) applications.
Ideal for integration into various devices.
Provides stable 24V power output.
Supports load sharing functionality.

ZWS10B-24 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the output voltage of the ZWS10B-24?

The output voltage is 24V DC.

What is the package type of the ZWS10B-24?

Open frame with chassis mount.

What is the operating temperature range?

-10°C to 70°C with derating.

What is the power rating of the ZWS10B-24?

10W.

What type of input voltage does it accept?

AC input.

Is the output adjustable?

Yes, it features adjustable output.

Does the ZWS10B-24 have CE certification?

Yes, it is CE certified.

Category	AC DC Converters
Manufacturer Name	TDK Corporation
Applications	ITE (Commercial)
Approval Agency	CE
Current	500mA
Efficiency	84%
Features	Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Height	21.0mm (0.83")
Input Voltage	AC
Length	105.1mm (4.14")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 70°C (With Derating)
Output Voltage	24V
Power (Watts)	10W
Type	Open Frame
Voltage	3 kV
Width	50.0mm (1.97")
