| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

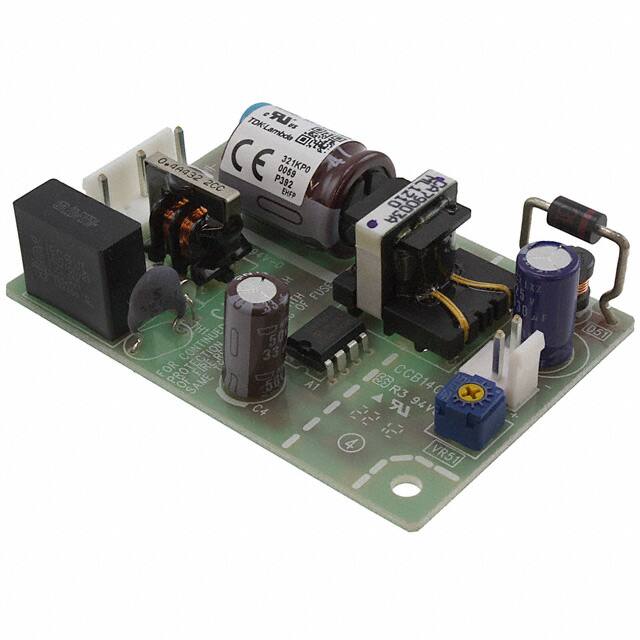

The TDK Corporation ZWS10B-12 is an open frame AC/DC converter delivering a 12V output at 10W and 900mA current. It features universal input capability, adjustable output, and PFC for efficient operation. The converter has an efficiency of 82% and an isolation voltage of 3 kV. Its dimensions are 105.1mm x 50.0mm x 21.0mm, and it is designed for chassis mounting.
This AC/DC converter is suitable for ITE (Commercial) applications and operates within a temperature range of -10°C to 70°C with derating. Key features include DC input capability, load sharing, and a RoHS3 compliant status. The unit has a moisture sensitivity level of 1 (unlimited).
Designed for reliable power conversion, the ZWS10B-12 offers essential features for various electronic systems. Its open frame construction and chassis mount type facilitate integration into equipment designs.
12V.
900 mA.
10W.
82%.
-10°C to 70°C (with derating).
Open frame, chassis mount, 105.1mm x 50.0mm x 21.0mm.
Chassis Mount.
