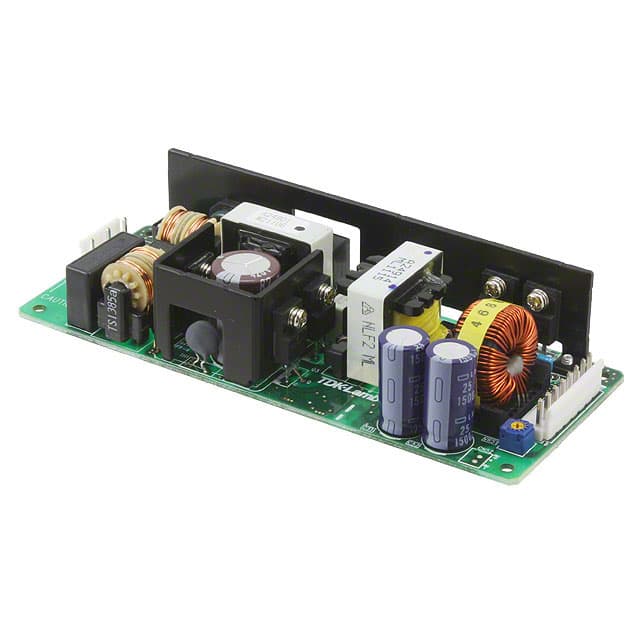

The ZWS100BAF-15 is an AC/DC converter from TDK Corporation delivering a nominal 15V output at 100W. It accepts a wide input voltage range of 85-265VAC (47-63Hz) or 120-370VDC. The converter features convection cooling and operates over -10 to +70°C with derating above +50°C. Output voltage is adjustable from 21.6V to 26.4V. Protection features include over current protection (2.20A typical) and over voltage protection (17.3-20.3V). The unit provides 3kVAC input-to-output isolation and meets EN55011/EN55032-B, FCC-B, and VCCI-B conducted and radiated emission standards. It is designed to meet IEC61000-6-2 immunity standards. The converter weighs 165g and supports series operation.
85-265VAC (47-63Hz) or 120-370VDC.
Nominal 15V output, 100W maximum power.
-10 to +70°C with derating above +50°C.
Yes, over current protection is set at 2.20A typical for the 24V output variant.
3kVAC between input and output, 2kVAC input to FG, 500VAC output to FG.
Designed to meet EN55011/EN55032-B, FCC-B, VCCI-B for conducted and radiated emissions, and IEC61000-6-2 for immunity.
