| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
57 pcs
|
57 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Operating Voltage | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

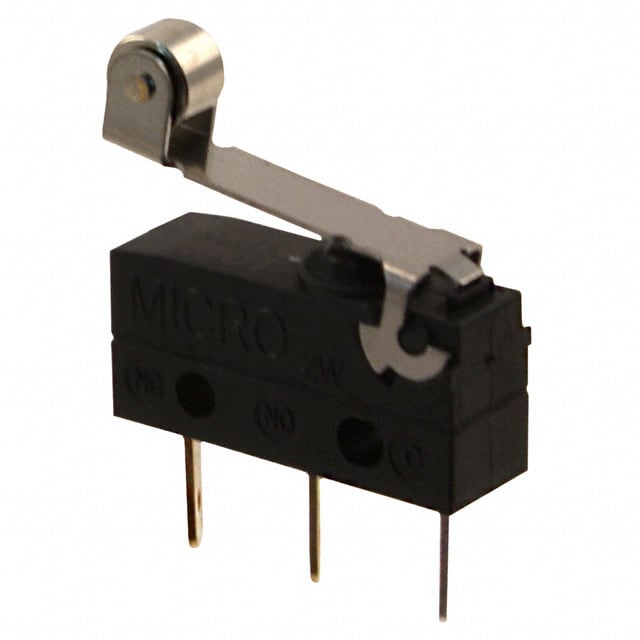

The Honeywell ZW10E70FD1 is a subminiature snap action limit switch from the ZW Series. It is designed for applications requiring precise switching with a SPDT circuit configuration. This switch offers a current carrying capacity of 100mA at 125V AC, making it suitable for various control applications.
Featuring a lever roller actuator and chassis mount, the ZW10E70FD1 is built for durability. It operates within a temperature range of -40°C to 120°C. The switch has a pretravel of 0.170" (4.3mm) and an overtravel of 0.035" (0.9mm), with a differential travel of 0.025" (0.6mm). Its operating force is 56gf and release force is 11gf.
This switch is suitable for applications where space is limited due to its subminiature package size. The termination style is Quick Connect - 0.110" (2.8mm), facilitating easy electrical connections. The ZW10E70FD1 is rated for IP00 ingress protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 125 V.
The current rating is 100mA (AC).
It uses chassis mounting.
It operates from -40°C to 120°C.
The ingress protection rating is IP00.
