| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,187 pcs
|
8187 pcs | On Request | 1 | On Request | On Request | 00+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Operating Temperature | |
| Power Dissipation | |
| Rds On (Max) @ Id, Vgs | |
| Vgs(th) (Max) @ Id |
The ZVN3306FTA is an N-Channel MOSFET manufactured by ZETEX, designed for various electronic applications. This component features a maximum drain-source voltage of 60V and a continuous drain current of 150mA.
Key electrical characteristics include a maximum gate-source voltage of ±20V and a typical threshold voltage of 2.4V at 1mA. The on-resistance (Rds On) is specified as a maximum of 5 Ohms at 500mA and 10V gate-source voltage. The device has a maximum power dissipation of 330mW at ambient temperature.

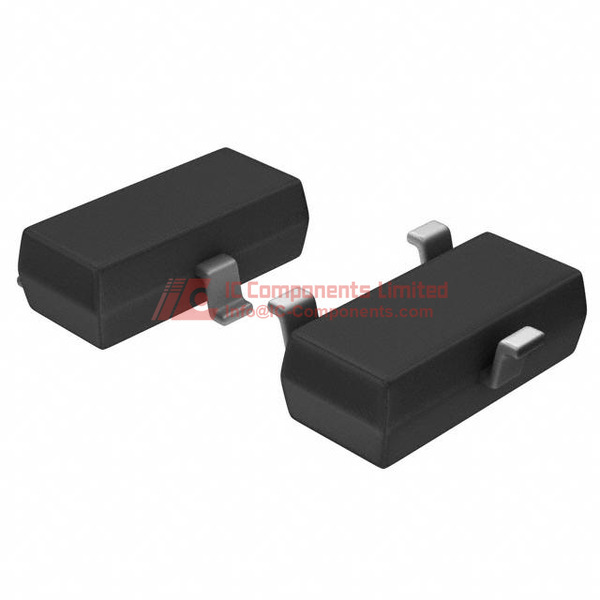

Packaged in a surface-mount SOT-23-3 (TO-236-3, SC-59) case, the ZVN3306FTA is suitable for automated assembly processes. It operates within a temperature range of -55°C to 150°C. The component is supplied on tape and reel for high-volume manufacturing.
This MOSFET is RoHS compliant and has a Moisture Sensitivity Level (MSL) of 1, indicating it is suitable for standard handling procedures in manufacturing environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.04 | $0.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum drain-source voltage is 60V.
The continuous drain current is 150mA.
The Rds On is a maximum of 5 Ohm at 500mA and 10V.
The operating temperature range is -55°C to 150°C.
The ZVN3306FTA is supplied in a SOT-23-3 package.
Yes, the ZVN3306FTA is Lead free / RoHS Compliant.
The Moisture Sensitivity Level (MSL) is 1.
