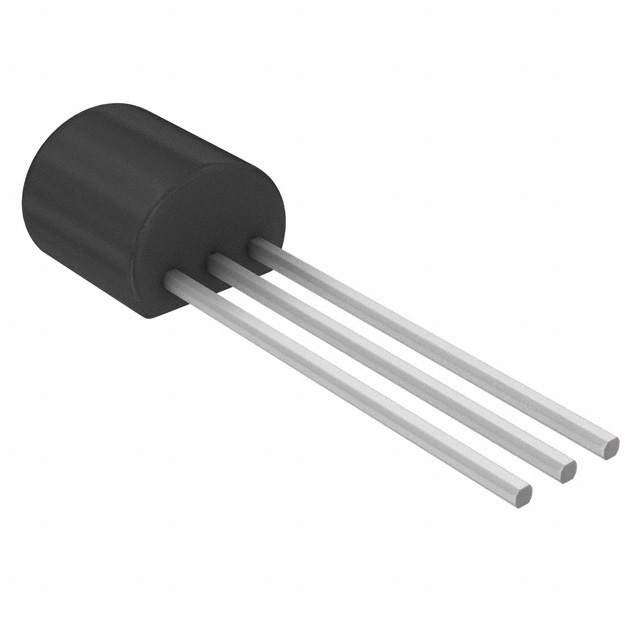

ZTX601STZ ZTX601STZ is a 160V, 1A NPN Darlington transistor from Diodes Incorporated in a through-hole E-Line-3 package. It features a 250MHz transition frequency and a minimum DC current gain of 2000.
Mfr Part #:

ZTX601STZ

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
ZTX601STZ is a 160V, 1A NPN Darlington transistor from Diodes Incorporated in a through-hole E-Line-3 package. It features a 250MHz transition frequency and a minimum DC current gain of 2000.
✓ Total Stock: 2,000 pcs
$ Price Range: $0.33

ZTX601STZ Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2,000 pcs
On Request
2000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZTX601STZ Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
DC Current Gain (hFE) (Min) @ Ic, Vce
Mounting Type
Operating Temperature
SVHC Present
View Similar Products (0)

ZTX601STZ Description

Short technical summary and product information.

The ZTX601STZ is an NPN Darlington transistor manufactured by Diodes Incorporated. It is designed for general-purpose switching and amplification applications requiring high current gain and medium voltage capability.



Key electrical specifications include a collector-emitter breakdown voltage of 160V, a maximum collector current of 1A, and a maximum power dissipation of 1W. The device offers a high minimum DC current gain (hFE) of 2000 at 500mA and 10V, and a transition frequency of 250MHz. The collector-emitter saturation voltage is 1.2V maximum at 10mA base current and 1A collector current.



The transistor is housed in an E-Line-3 package with formed leads, designed for through-hole mounting. It is rated for an operating junction temperature range of -55°C to 200°C, making it suitable for demanding thermal environments.

ZTX601STZ Quick Information

Product Type: Bipolar Transistor
Canonical Name: Diodes Incorporated ZTX601STZ NPN - Darlington Bipolar Transistor
Subcategory: Single

ZTX601STZ Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZTX601STZ Estimated Pricing

Qty Low High
1+ $0.33 $0.33

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZTX601STZ Features

  • 160V collector-emitter breakdown voltage.
  • 1A maximum continuous collector current.
  • 250MHz transition frequency for fast switching.
  • Minimum DC current gain of 2000.
  • Through-hole E-Line-3 package with formed leads.

ZTX601STZ Applications

  • General purpose switching and amplification.
  • Medium voltage Darlington transistor circuits.
  • High gain driver stages in industrial controls.
  • Power management in automotive and consumer electronics.

ZTX601STZ FAQs

6 frequently asked questions generated from this part’s specifications.
What is the maximum collector-emitter voltage of the ZTX601STZ?

The maximum collector-emitter breakdown voltage is 160V.

What is the maximum collector current rating?

The maximum collector current is 1A.

What is the operating temperature range?

The operating junction temperature range is -55°C to 200°C.

What package does the ZTX601STZ come in?

It comes in an E-Line-3 package with formed leads for through-hole mounting.

What is the DC current gain (hFE) of this transistor?

The minimum DC current gain is 2000 at 500mA collector current and 10V collector-emitter voltage.

What is the transition frequency of the ZTX601STZ?

The transition frequency is 250MHz.
