| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Capacitance | |
| Dimensions | |
| Frequency | |
| Frequency Stability | |
| Frequency Tolerance | |
| Height | |
| Impedance | |
| Mounting Type | |
| Operating Temperature |

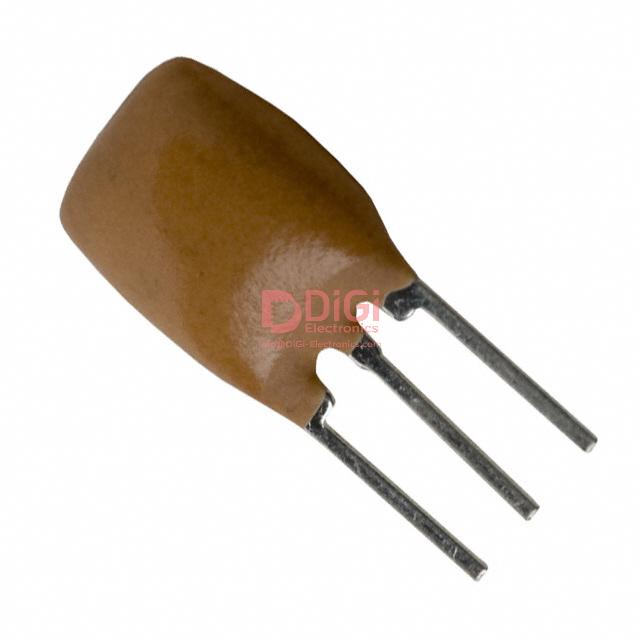

The ECS Inc. ZTT20.00MX is a ceramic resonator designed for electronic circuits requiring stable frequency generation. It operates at a nominal frequency of 20 MHz with a tight frequency stability of ±0.3% and a frequency tolerance of ±0.5%.
This resonator includes a built-in capacitor with a capacitance value of 30 pF and an impedance of 30 Ohms. It is designed for through-hole mounting and comes in a radial package with a 2.50mm pitch. The operating temperature range for this component is -20°C to 80°C.
The physical dimensions of the ZTT20.00MX are 10.00mm in length, 5.00mm in width, and 10.00mm in height. The product status is listed as Obsolete.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.79 | $6.79 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating frequency is 20 MHz.
The frequency stability is ±0.3%.
The capacitance is 30 pF.
The operating temperature range is -20°C to 80°C.
It is a through-hole mounted component.
