Mfr Part #:

ZSS-120-06-T-D-1040

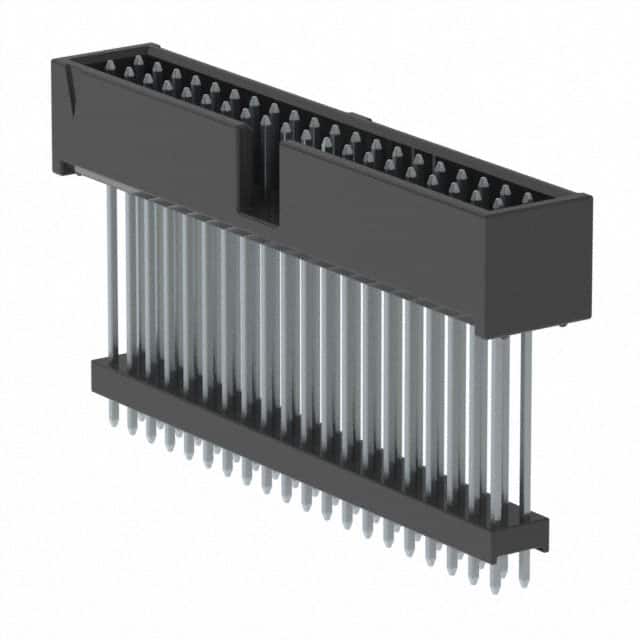

Samtec ZSS-120-06-T-D-1040 is a 40 position elevated header with 2.54mm pitch, through hole termination, and shrouded design. It is rated for 3A and operates from -55°C to 105°C.

✓ Total Stock: 158 pcs

$ Price Range: $2.19 - $4.10

ZSS-120-06-T-D-1040 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	158 pcs On Request	158 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ZSS-120-06-T-D-1040 Description

Short technical summary and product information.

The Samtec ZSS-120-06-T-D-1040 is a 40 position elevated header connector designed for board-to-board or cable applications. It features a 2.54mm pitch and 2.54mm row spacing, with all 40 positions loaded in a dual-row configuration. The connector uses phosphor bronze square male pins with a tin contact finish and a solder termination style.

The header is fully shrouded with a 4-wall design and includes a keying slot for alignment. The insulation is black glass-filled polyester rated UL94 V-0, and the overall contact length is 28.70mm with an insulation height of 26.42mm. The operating temperature range is -55°C to 105°C, and the current rating is 3A.

ZSS-120-06-T-D-1040 Quick Information

Product Type: Header, Elevated

Series: ZSS

Canonical Name: Samtec ZSS Series 40 Position Elevated Header, Male Pin, Through Hole, 2.54mm Pitch

Subcategory: Shrouded Header

ZSS-120-06-T-D-1040 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ZSS-120-06-T-D-1040 Estimated Pricing

Qty	Low	High
1+	$4.10	$4.10
50+	$3.84	$3.84
100+	$3.70	$3.70
500+	$3.07	$3.07
1,000+	$2.89	$2.89
2,500+	$2.54	$2.54
5,000+	$2.19	$2.19

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZSS-120-06-T-D-1040 Features

40 position elevated header with 2.54mm pitch.
Through hole termination with tin-plated contacts.
Shrouded 4-wall design with keying slot.
Rated for 3A continuous current.
UL94 V-0 glass-filled polyester insulation.

ZSS-120-06-T-D-1040 Applications

Board-to-board stacking applications.
Cable-to-board interconnect systems.
General purpose signal routing in industrial electronics.
Prototyping and test fixtures.

ZSS-120-06-T-D-1040 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the pitch of the ZSS-120-06-T-D-1040?

The pitch is 2.54mm (0.100").

How many positions does the ZSS-120-06-T-D-1040 have?

It has 40 positions, all loaded, in 2 rows.

What is the current rating of this header?

The current rating is 3A.

What is the mounting type for the ZSS-120-06-T-D-1040?

It is a through hole mounting connector with solder termination.

What is the operating temperature range?

The operating temperature range is -55°C to 105°C.

Is the ZSS-120-06-T-D-1040 shrouded?

Yes, it is fully shrouded with a 4-wall design and includes a keying slot.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Elevated
Contact Finish	Tin
Contact Length	6.35mm (0.250")
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	26.42mm (1.040")
Insulation Material	Polyester, Glass Filled
Lead Spacing	2.54 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 105°C
Overall Contact Length	1.130" (28.70mm)
Pitch	2.54mm (0.100")
Row Spacing	0.100" (2.54mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Tape & Reel	No
Termination	Solder
