ZSS-117-01-S-D-540

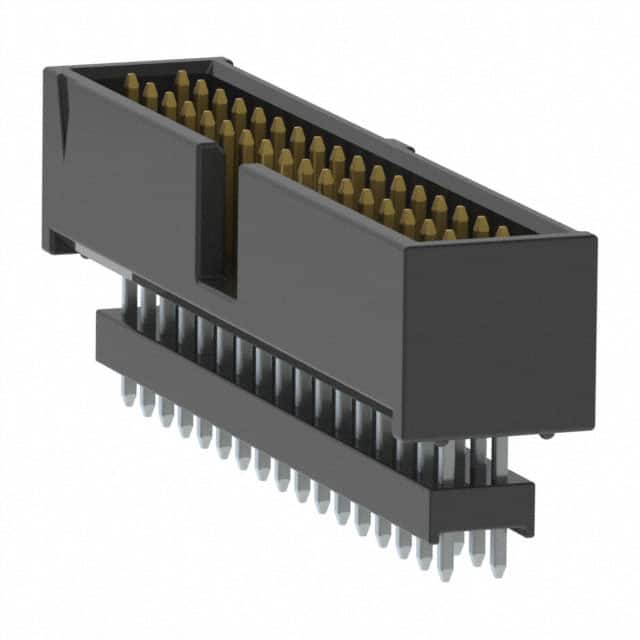

Samtec ZSS-117-01-S-D-540 is a 34-position elevated header with 2.54mm pitch, through hole mounting, and tin-plated phosphor bronze contacts.

✓ Total Stock: 100 pcs

$ Price Range: $4.91 - $6.77

ZSS-117-01-S-D-540 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
HMB Electronics LLC ✓ Non-Authorised Inventory information	100 pcs On Request	100 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ZSS-117-01-S-D-540 Description

Short technical summary and product information.

The Samtec ZSS-117-01-S-D-540 is a 34-position elevated header connector designed for board-to-board or cable applications. It features a 2.54mm pitch and dual-row configuration with all positions loaded. The connector uses phosphor bronze male pin contacts with a tin finish (0.76µm thickness) and a square contact shape.

The header is shrouded with a 4-wall design and includes a keying slot for alignment. The insulation is black glass-filled polyester rated UL94 V-0. The overall contact length is 16.00mm with a mating contact length of 6.35mm and an insulation height of 13.72mm. The operating temperature range is -55°C to 125°C.

Mounting is through hole with solder termination. The current rating is 3A per contact. The push-pull fastening type provides secure mating. This component is suitable for applications requiring a reliable elevated header connection.

ZSS-117-01-S-D-540 Quick Information

Product Type: Header, Elevated

Series: ZSS

Canonical Name: Samtec ZSS Series 34 Position 2.54mm Pitch Elevated Header, Through Hole, Tin

Subcategory: Headers, Male Pins

ZSS-117-01-S-D-540 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

ZSS-117-01-S-D-540 Estimated Pricing

Qty	Low	High
1+	$6.77	$6.77
50+	$6.61	$6.61
100+	$6.36	$6.36
500+	$5.54	$5.54
1,000+	$5.32	$5.32
2,000+	$4.91	$4.91

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZSS-117-01-S-D-540 Features

34-position elevated header connector.
2.54mm pitch with dual rows.
Tin-plated phosphor bronze contacts.
Through hole solder termination.
UL94 V-0 rated insulation.

ZSS-117-01-S-D-540 Applications

Board-to-board interconnect applications.
Cable-to-board connection systems.
Elevated header for stacking connectors.
General purpose signal interconnection.

ZSS-117-01-S-D-540 FAQs

7 frequently asked questions generated from this part’s specifications.

How many positions does the ZSS-117-01-S-D-540 have?

34 positions, all loaded, in 2 rows.

What is the pitch of this connector?

2.54 mm (0.100")

What is the current rating?

3 A per contact.

What mounting type does this header use?

Through hole with solder termination.

What is the operating temperature range?

-55°C to 125°C.

What is the contact material and finish?

Phosphor bronze contacts with a tin finish (0.76 µm thickness).

Is the connector shrouded?

Yes, it is shrouded with a 4-wall design and includes a keying slot.

Category	Headers, Male Pins
Manufacturer Name	Samtec Inc.
Connector Type	Header, Elevated
Contact Finish	Tin
Contact Finish Thickness	0.76 µm
Contact Length	6.35 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	13.72 mm
Insulation Material	Polyester, Glass Filled
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	34
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-55°C ~ 125°C
Overall Contact Length	16.00 mm
Pitch	2.54 mm
Row Spacing	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
