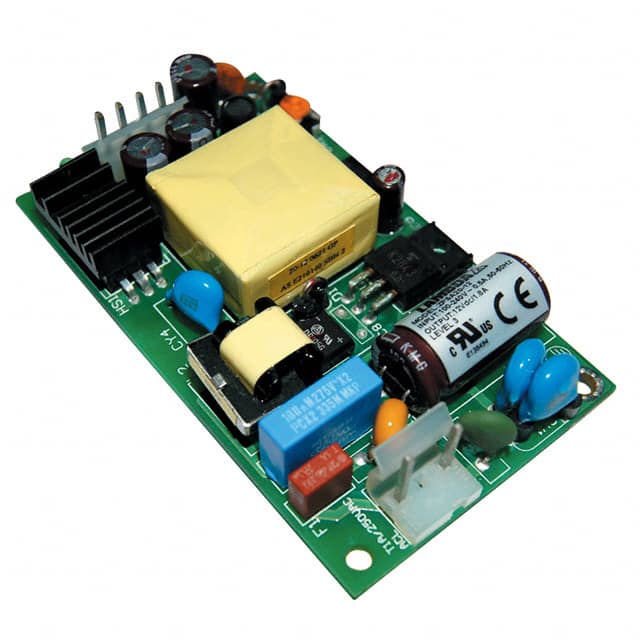

The TDK Corporation ZPSA20-9 is an open frame AC/DC converter designed for chassis mounting. It provides a single output of 9V with a maximum current of 2.45A, delivering a total power of 20W. This converter boasts an efficiency of 82% and operates within a temperature range of 0°C to 70°C.
With dimensions of 88.9mm x 50.8mm x 20.0mm, the ZPSA20-9 is suitable for various applications requiring a reliable power supply. It features universal input and is designed for ITE (Commercial) use, offering a voltage isolation of 3 kV. The unit is RoHS3 compliant and has an MSL rating of 1.
Key specifications include a 2.45A current output, 20W power rating, and 82% efficiency. The operating temperature range is 0°C to 70°C, and it has a voltage isolation of 3 kV. The physical dimensions are 88.9mm in length, 50.8mm in width, and 20.0mm in height.
The ZPSA20-9 provides a 9V output voltage with a maximum current of 2.45A.
The ZPSA20-9 has a power rating of 20W.
The ZPSA20-9 operates within a temperature range of 0°C to 70°C.
The ZPSA20-9 converter has an efficiency of 82%.
The ZPSA20-9 is designed for chassis mounting.
