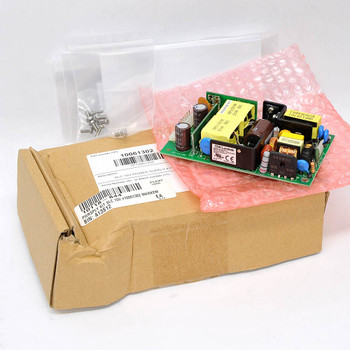

This TDK Corporation ZPSA100-15 is an AC DC converter designed for ITE (Commercial) applications. It provides a 100W power output with a 15V voltage and a 6.7A current rating.
The converter features an open frame construction and is designed for chassis mounting. It operates with an efficiency of 84% and includes features such as DC Input Capable, PFC, and Universal Input. The operating temperature range is 0°C to 70°C with derating.
Key specifications include a 3kV isolation voltage and a single output. The dimensions are 127.0mm x 76.2mm x 26.6mm. This model is RoHS3 Compliant, has an MSL of 1 Unlimited, and is REACH Unaffected.
The ZPSA100-15 provides a single output of 15V at 6.7A.
The ZPSA100-15 is rated for 100W.
The efficiency is 84%.
The operating temperature range is 0°C to 70°C with derating.
The isolation voltage is 3 kV.
It uses chassis mount.
