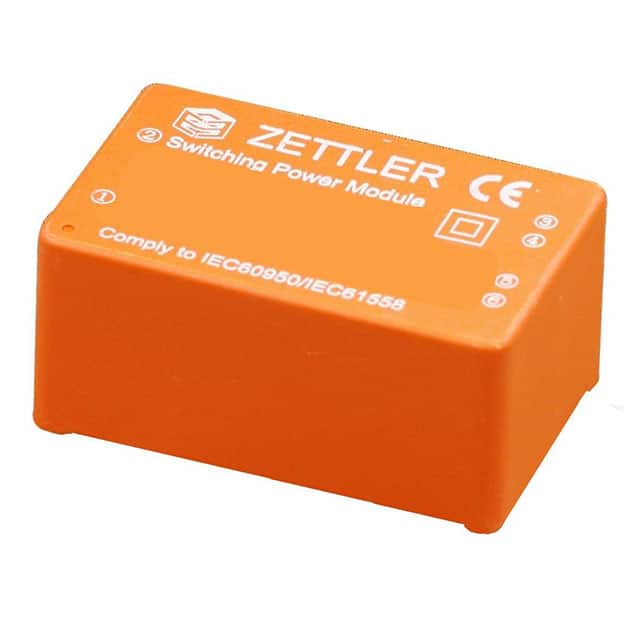

The American Zettler ZP20S1200WL is a PCB-mounted switching power module designed for AC/DC conversion. It provides a 12V DC output with a maximum current of 1.67A, delivering a total of 20W of power.
This converter features a wide AC input voltage range of 85-264VAC and a DC input range of 100-370VDC. It operates with an efficiency of 85% at 230VAC and has a low no-load loss of 0.3W. Key electrical specifications include ±5% voltage accuracy, ±1% line regulation, and ±1% load regulation. Protection features include over-current, over-voltage, and short-circuit protection with self-recovery.
The operating temperature range is -25°C to 50°C, with storage temperatures from -25°C to 85°C. The module is housed in a 4-DIP module package and is designed for through-hole mounting. It meets EN55032 Class B EMI standards and complies with safety standards such as EN60950-1 and UL62368-1. The isolation voltage is rated at a minimum of 3000Vac.
85-264VAC or 100-370VDC.
4-DIP Module with through-hole mounting.
-25°C to 50°C.
12Vdc at 1670mA (20W).
Over-current protection (≥120% Io) and hiccup short-circuit protection with self-recovery.
52.4mm x 27.2mm x 24.0mm, weighing 59g.
EN60950-1, UL60950-1, UL62368-1.
