| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
214 pcs
|
214 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Features | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Storage Temperature | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

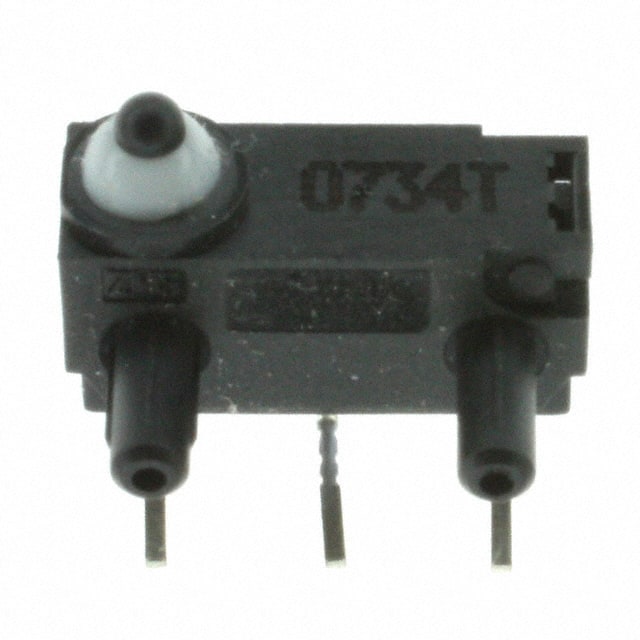

The C&K Components ZMSL03130P00RRC is a mini-size snap-acting switch from the ZMS series, designed for applications where space is limited. It features a reliable snap-acting mechanism and a long electrical and mechanical life.
This switch has a contact rating of 3A at 125V AC and 3A at 12V DC, with a low-level rating of 0.01A at 12V DC. The electrical life is rated for 100,000 cycles at 0.01A 12V DC and 3A 12V DC, and 6,000 cycles at 3A 125V AC. The mechanical life is 500,000 cycles.
With an operating temperature range of -40°C to 85°C, the ZMSL03130P00RRC offers robust performance. It has an operating force of 130gf, a pretravel of 0.030" (0.8mm), and an overtravel of 0.031" (0.79mm). The differential travel is 0.012" (0.3mm).
The switch is mounted via a through-hole, right-angle termination style with PC pins. It offers IP65 ingress protection, making it dust-tight and water-resistant. Typical applications include PCB detection, communication devices, testing equipment, security systems, consumer electronics, and automotive components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The current rating is 3A at 125V AC and 3A at 12V DC.
This switch has an SPDT circuit.
The mechanical life is 500,000 cycles.
The ingress protection rating is IP65, meaning it is dust-tight and water-resistant.
