| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

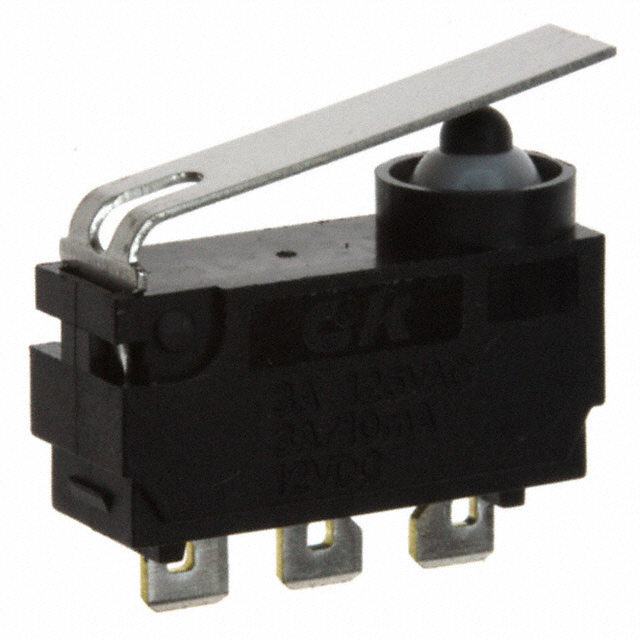

The C&K Components ZMSH03130T10SSC is a mini size snap-acting switch from the ZMS series. It is designed with a reliable snap-acting mechanism for long electrical and mechanical life, making it suitable for applications where space is limited.
This switch features a Single Pole Double Throw (SPDT) circuit and a contact rating of 3A at 125V AC or 12V DC, with a low-level rating of 0.01A at 12V DC. The electrical life is rated for 100,000 cycles at 0.01A/12V DC and 3A/12V DC, and 6,000 cycles at 3A/125V AC. The mechanical life is 500,000 cycles.
Key specifications include an operating temperature range of -40°C to 85°C, an insulation resistance of 100 MΩ minimum, and a dielectric strength of 500 Vrms. The operating force is 130 grams, with a pretravel of 0.152" (3.85mm), release force of 55gf, overtravel of 0.084" (2.14mm), and differential travel of 0.020" (0.5mm).
The ZMSH03130T10SSC has a chassis mount type and solder lug termination style. It also offers IP65 ingress protection. Materials include a Nylon case, PBT cover/actuator, silver alloy contacts with gold plating, brass silver-plated terminals, and a stainless steel lever.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The contact rating is 3A at 125V AC and 3A at 12V DC.
-40°C to 85°C.
The switch has an IP65 ingress protection rating.
The contacts are made of silver alloy with gold plating.
The mechanical life is 500,000 cycles.
