| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
34 pcs
|
34 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Circuit | |
| Current Rating (Amps) | |
| Differential Travel | |
| Ingress Protection | |
| Insulation Resistance | |
| Lead Style | |
| Mounting Type | |
| Operating Force | |
| Operating Temperature | |
| Overtravel | |
| Pretravel | |
| Release Force | |
| Switch Function | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

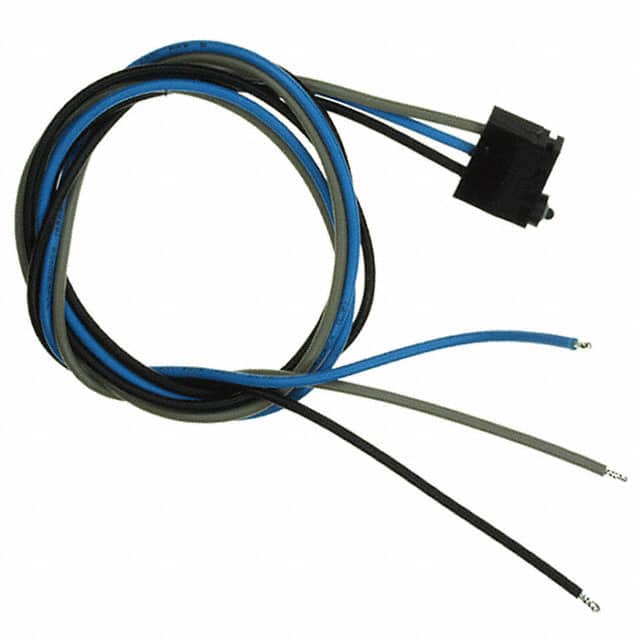

The C&K Components ZMSH03130P00JSC is a mini size snap-acting switch designed for applications where space is limited. It features a reliable snap-acting mechanism and a long electrical and mechanical life.
This switch has a SPDT circuit and a contact rating of 3A at 125V AC or 3A at 12V DC, with a low-level rating of 0.01A at 12V DC. The operating force is 130gf, with a pretravel of 0.030" (0.8mm) and an overtravel of 0.065" (1.7mm). It also offers an ingress protection rating of IP67.
Typical applications include PCB detection switches, communication devices, testing equipment, security/alarm systems, consumer electronics, and automotive uses such as door latch and seat position detection.
The switch is constructed with a Nylon case, PBT cover/actuator, silver alloy contacts, and brass silver-plated terminals. It is RoHS compatible.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a voltage rating of 125 V AC and 30 V DC.
The contact rating is 3A at 125V AC, 3A at 12V DC, and 0.01A at 12V DC for low-level switching.
The operating temperature range is -40°C to 85°C.
The ingress protection rating is IP67.
The mechanical life is 500,000 cycles.
The switch has a SPDT (Single Pole Double Throw) circuit.
The operating force is 130gf.
