| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
619 pcs
|
619 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 |
| Category | |
| Manufacturer Name | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Mounting Type | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Utilized IC | |
| Voltage |

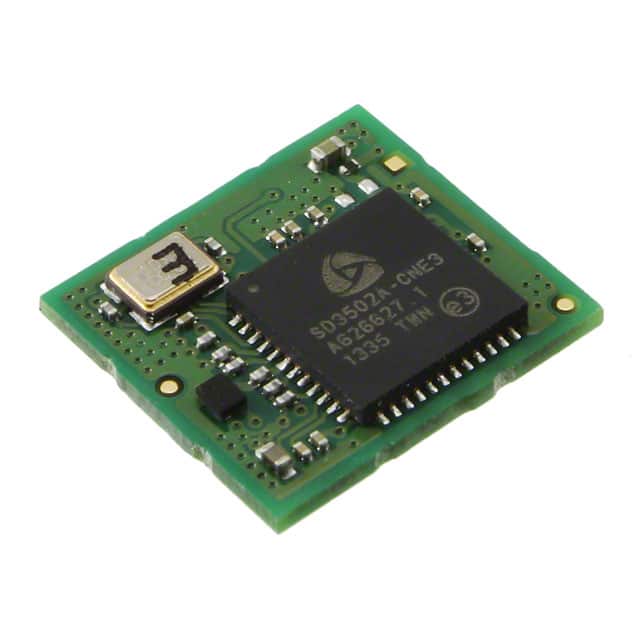

The ZM5202AE-CME3R module from Silicon Labs integrates a Z-Wave SD3502 SoC with a microcontroller, RF transceiver, crystal, and passive RF components. This makes it suitable for single microcontroller applications such as lighting and sensors.
Key electrical specifications include an operating voltage range of 2.3V to 3.6V, a current draw of 32mA, and an output power of 4dBm. It supports a data rate of 100Kbps and offers a receiver sensitivity of -103dBm. The module operates at 868MHz and uses the Z-Wave protocol.
Connectivity is provided via SPI, UART, and USB serial interfaces. The module features 128kB Flash and 16kB SRAM memory. It is designed for surface mount installation and comes in a module package.
The ZM5202AE-CME3R provides hardware-assisted frequency agility to switch away from noisy channels without communication overhead. Its very-low sleep current is beneficial for applications requiring longer battery life.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.06 | $6.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage is 2.3V to 3.6V.
The data rate is 100Kbps.
The receiver sensitivity is -103dBm.
It supports SPI, UART, and USB serial interfaces.
The module operates at 868MHz.
The module supports the Z-Wave® protocol.
