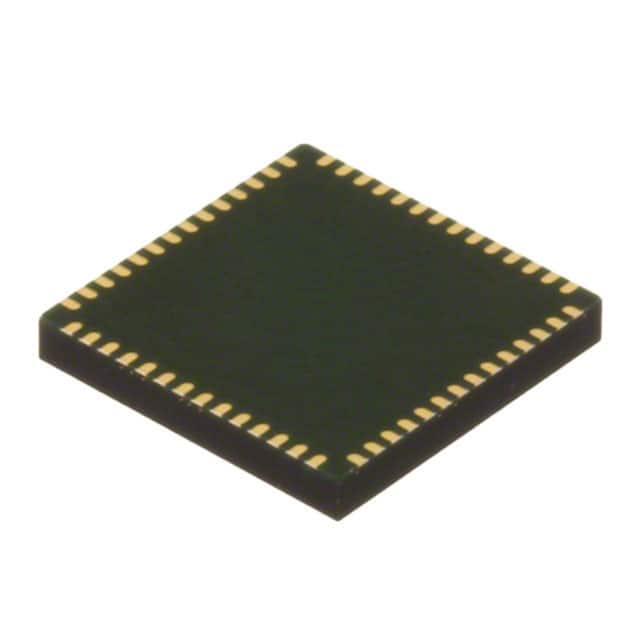

ZM5101A-CME3 The Silicon Labs ZM5101A-CME3 is an RF Transceiver IC with integrated MCU, operating on the Z-Wave protocol. It supports frequencies of 868MHz, 908MHz, and 921MHz.
Mfr Part #:

ZM5101A-CME3

Available from 1 distributors
Mfr Name: Silicon Labs
Silicon Labs
The Silicon Labs ZM5101A-CME3 is an RF Transceiver IC with integrated MCU, operating on the Z-Wave protocol. It supports frequencies of 868MHz, 908MHz, and 921MHz.
✓ Total Stock: 2 pcs

ZM5101A-CME3 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request 16+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZM5101A-CME3 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Data Rate
Failure Rate
Frequency
GPIO
Memory Size
Mounting Type
Protocol
Sensitivity
Serial Interfaces
Supplier Device Package
Tape & Reel
Type
Voltage Supply
View Similar Products (0)

ZM5101A-CME3 Description

Short technical summary and product information.

The Silicon Labs ZM5101A-CME3 is a versatile RF Transceiver IC designed for Z-Wave applications. It integrates a microcontroller, offering a complete solution for wireless communication.



Key electrical specifications include a supply voltage range of 2.3V to 3.6V, an output power of 5dBm, and a maximum data rate of 100kbps. The device features a sensitivity of -104dBm and operates across multiple frequencies: 868MHz, 908MHz, and 921MHz.



This IC comes in a 56-TFLGA Module package and is designed for surface mounting. It includes 128kB of Flash memory and 16kB of SRAM, along with 30 GPIO pins for flexible integration. The ZM5101A-CME3 is part of the Z-Wave® series, making it suitable for smart home and IoT devices.



Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The device supports SPI and UART serial interfaces for communication with other components.

ZM5101A-CME3 Quick Information

Product Type: RF Transceiver IC
Series: Z-Wave®
Canonical Name: ZM5101A-CME3 RF Transceiver IC with MCU
Subcategory: RF Transceiver Modules and Modems

ZM5101A-CME3 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZM5101A-CME3 Features

  • Z-Wave® RF Transceiver IC with MCU.
  • Supports 868MHz, 908MHz, and 921MHz frequencies.
  • 5dBm output power and 100kbps data rate.
  • Integrated 128kB Flash and 16kB SRAM.
  • Surface mount 56-TFLGA Module package.

ZM5101A-CME3 Applications

  • Ideal for Z-Wave smart home devices.
  • Suitable for wireless sensor networks.
  • Used in IoT communication modules.
  • Enables remote control applications.

ZM5101A-CME3 FAQs

4 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ZM5101A-CME3?

The operating voltage for the ZM5101A-CME3 is between 2.3V and 3.6V.

What package type is the ZM5101A-CME3 supplied in?

The ZM5101A-CME3 is supplied in a 56-LGA Module (8x8) or 56-TFLGA Module package.

What is the RoHS status of the ZM5101A-CME3?

The ZM5101A-CME3 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ZM5101A-CME3?

The Moisture Sensitivity Level (MSL) for the ZM5101A-CME3 is 1 Unlimited.
