| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,000 pcs
|
90000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | 2026-02-16 21:33:16 | |
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | 942 | On Request | On Request | |
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Impedance (Max) (Zzt) | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Supplier Device Package | |
| Tape & Reel | |
| Tolerance | |
| Voltage |

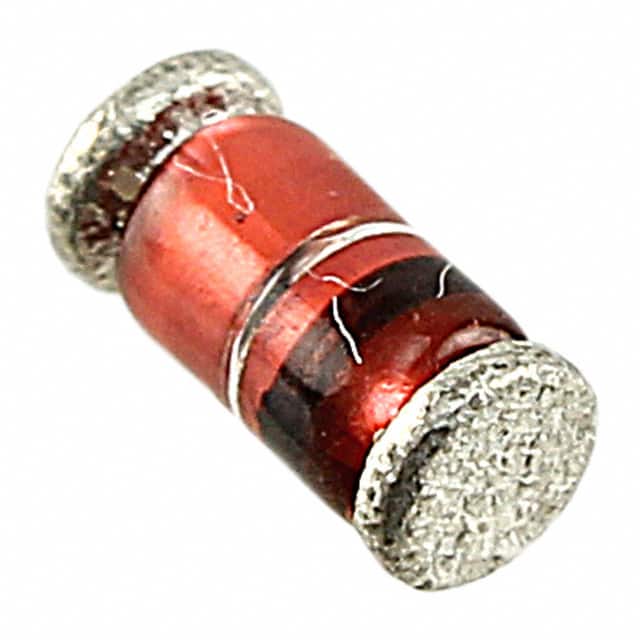

The Vishay ZM4749A-GS08 is a silicon planar power Zener diode designed for general purpose voltage regulation and clipping circuits. It offers a nominal Zener voltage of 24V with a tolerance of ±5% and a maximum power dissipation of 1W.
This device features a maximum impedance of 25 Ω at the Zener test current and a low reverse leakage current of 5 µA at 18.2V. It is rated for operation up to a junction temperature of 175°C.
The ZM4749A-GS08 is housed in a DO-213AB MELF (glass) package, which is suitable for surface mount assembly. The package is rated MSL level 1 (unlimited) and is compatible with lead-free soldering processes up to 260°C peak.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.71 | $0.71 |
| 10+ | $0.44 | $0.44 |
| 100+ | $0.28 | $0.28 |
| 500+ | $0.22 | $0.22 |
| 1,000+ | $0.18 | $0.18 |
| 1,500+ | $0.16 | $0.16 |
| 3,000+ | $0.15 | $0.15 |
| 9,000+ | $0.13 | $0.13 |
| 24,000+ | $0.13 | $0.13 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal Zener voltage is 24V.
The maximum power dissipation is 1W.
It comes in a DO-213AB MELF (glass) surface mount package.
The tolerance is ±5%.
The maximum reverse leakage current is 5 µA at 18.2V.
The maximum impedance (Zzt) is 25 Ω.
