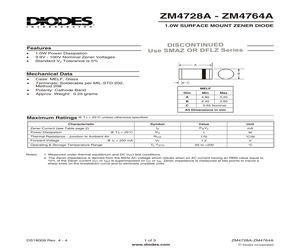

ZM4735A-13 The Diodes Incorporated ZM4735A-13 is a Zener diode with a nominal voltage of 6.2V and a power dissipation of 1W. It features a 5% voltage tolerance and comes in a surface mount DO-213AB package.
Mfr Part #:

ZM4735A-13

Available from 1 distributors
Mfr Name: Diodes Incorporated
Diodes Incorporated
The Diodes Incorporated ZM4735A-13 is a Zener diode with a nominal voltage of 6.2V and a power dissipation of 1W. It features a 5% voltage tolerance and comes in a surface mount DO-213AB package.
✓ Total Stock: 42 pcs
$ Price Range: $0.02

ZM4735A-13 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
42 pcs
On Request
42 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZM4735A-13 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Mounting Type
Operating Temperature
Tape & Reel
Voltage
View Similar Products (0)

ZM4735A-13 Description

Short technical summary and product information.

The ZM4735A-13 from Diodes Incorporated is a single Zener diode designed for voltage regulation applications. It offers a nominal working voltage of 6.2V with a tolerance of 5% and can handle a maximum power dissipation of 1W.



This diode operates with a test current of 41mA and has a low reverse leakage current of 10µA at 3V. The impedance at the Zener test voltage (Zzt) is a maximum of 2 Ohms.



Packaged in a DO-213AB MELF (Glass) case, the ZM4735A-13 is designed for surface mounting. It has a high operating temperature range, rated up to 175°C. The standard package quantity is 5,000 units on tape and reel.

ZM4735A-13 Quick Information

Product Type: Zener Diode
Series: AEC-Q101
Canonical Name: ZM4735A-13 Zener Diode
Subcategory: Zener

ZM4735A-13 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

ZM4735A-13 Estimated Pricing

Qty Low High
1+ $0.02 $0.02

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZM4735A-13 Features

  • Nominal voltage rating of 6.2V.
  • Maximum power dissipation of 1W.
  • Voltage tolerance of 5%.
  • Surface mount DO-213AB package.
  • High operating temperature up to 175°C.

ZM4735A-13 Applications

  • Used for voltage regulation circuits.
  • Suitable for power supply stabilization.
  • Applicable in signal clamping circuits.
  • Can be used in overvoltage protection.

ZM4735A-13 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the nominal operating voltage of the ZM4735A-13?

The nominal operating voltage is 6.2V.

What is the maximum power dissipation for the ZM4735A-13?

The maximum power dissipation is 1W.

What is the voltage tolerance of this Zener diode?

The voltage tolerance is 5%.

What package type is the ZM4735A-13 supplied in?

It is supplied in a DO-213AB, MELF (Glass) package.

Is the ZM4735A-13 a surface mount device?

Yes, it is a surface mount device.

What is the standard package quantity for the ZM4735A-13?

The standard package quantity is 5,000.

What is the operating temperature range for the ZM4735A-13?

The operating temperature is up to 175°C.
