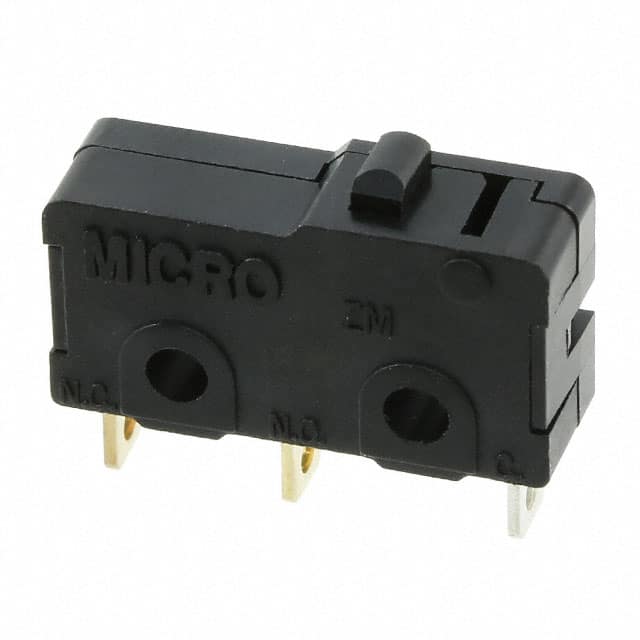

ZM10B10A01 The Honeywell ZM10B10A01 is a snap action limit switch with an SPDT circuit, rated for 100mA at 125V. It features chassis mount and solder lug termination.
Mfr Part #:

ZM10B10A01

Available from 1 distributors
Mfr Name: Honeywell
Honeywell
The Honeywell ZM10B10A01 is a snap action limit switch with an SPDT circuit, rated for 100mA at 125V. It features chassis mount and solder lug termination.
✓ Total Stock: 10,947 pcs
$ Price Range: $0.75

ZM10B10A01 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
10,947 pcs
On Request
10947 pcs On Request 1 On Request On Request 637 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZM10B10A01 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Circuit
Current Rating (Amps)
Differential Travel
Lead Style
Mounting Type
Operating Force
Operating Temperature
Overtravel
Pretravel
Release Force
Switch Function
Termination Style
Voltage Rating
View Similar Products (0)

ZM10B10A01 Description

Short technical summary and product information.

The Honeywell ZM10B10A01 is a snap action limit switch designed for various applications. It features a Single Pole Double Throw (SPDT) circuit, capable of handling 100mA at 125V.



Key specifications include an operating temperature range of -40°C to 120°C, a pretravel of 1.1mm, and an operating force of 60gf. The switch has a release force of 8.000gf and an overtravel of 0.4mm, with a differential travel of 0.2mm.



This limit switch is designed for chassis mounting and utilizes solder lug termination. The actuator type is a round pin plunger, and the switch function is On-Mom. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.

ZM10B10A01 Quick Information

Product Type: Limit Switch
Canonical Name: Honeywell ZM10B10A01 SPDT Limit Switch
Subcategory: Limit Switches

ZM10B10A01 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZM10B10A01 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZM10B10A01 Features

  • SPDT circuit for versatile switching.
  • Rated for 100mA at 125V.
  • Wide operating temperature range.
  • Chassis mount with solder lug termination.
  • Pin plunger actuator type.

ZM10B10A01 Applications

  • Suitable for industrial limit switch applications.
  • Used in machinery for position detection.
  • Ideal for automation and control systems.
  • Applicable in safety interlock mechanisms.

ZM10B10A01 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating temperature range for the ZM10B10A01?

The operating temperature range is -40°C to 120°C.

What is the current and voltage rating of the ZM10B10A01 switch?

The switch is rated for 100mA at 125V.

What type of actuator does the ZM10B10A01 have?

It features a round pin plunger actuator.

How is the ZM10B10A01 switch mounted and terminated?

It is designed for chassis mounting and uses solder lug termination.

What is the RoHS status of the ZM10B10A01?

The ZM10B10A01 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this switch?

The Moisture Sensitivity Level is 1.
