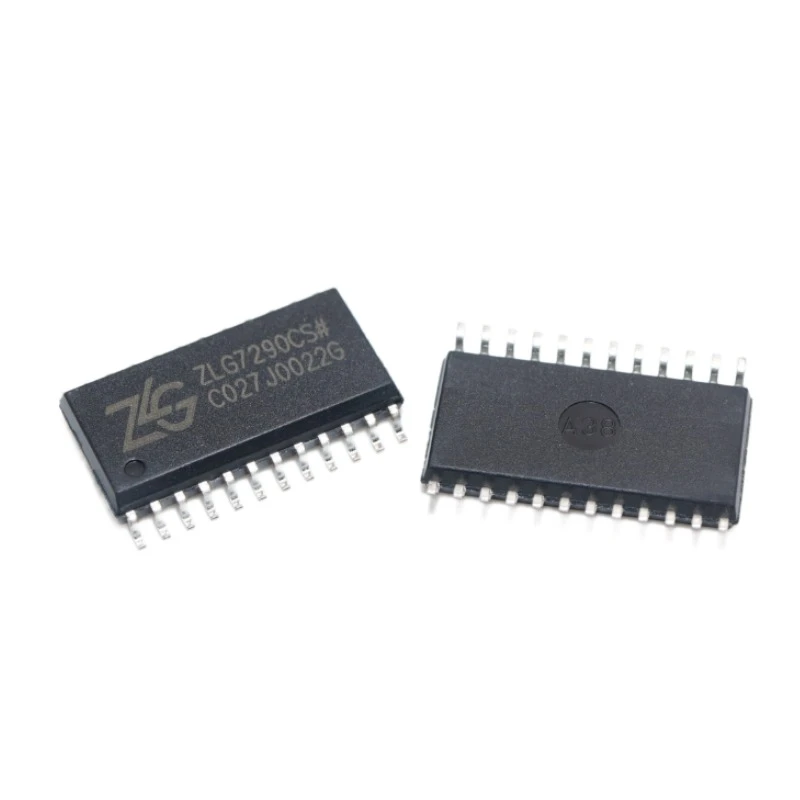

ZLG7290CS The ZLG7290CS is a versatile integrated circuit from ZLG featuring an I2C serial interface and keyboard interrupt signals. It operates at 3.3V and is housed in a SOP-24 package.
Mfr Part #:

ZLG7290CS

Available from 1 distributors
Mfr Name: ZLG
ZLG
The ZLG7290CS is a versatile integrated circuit from ZLG featuring an I2C serial interface and keyboard interrupt signals. It operates at 3.3V and is housed in a SOP-24 package.
✓ Total Stock: 438 pcs

ZLG7290CS Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
438 pcs
On Request
438 pcs On Request 1 On Request On Request 17+;15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZLG7290CS Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Input Voltage
Operating Temperature
Package / Case
SVHC Present
View Similar Products (0)

ZLG7290CS Description

Short technical summary and product information.

The ZLG7290CS is a highly versatile integrated circuit designed for easy interfacing with processors via its I2C serial interface. This industrial-grade device offers keyboard interrupt signals and provides control for scanning and blinking digits on an LED display. It includes 8 function keys capable of detecting multiple key presses, making it suitable for various applications.



This integrated circuit requires no external components and can directly drive LED displays. It supports expanded driving current and voltage, offering adaptability to different requirements. The ZLG7290CS operates at a nominal input voltage of 3.3V and has an operational temperature range of -20°C to 130°C. It is supplied in a SOP-24 package.



Overall, the ZLG7290CS is a powerful tool that enhances the functionality of a wide range of applications, providing a customizable and reliable interface. Its numerous features and user-friendly design facilitate efficient goal achievement.

ZLG7290CS Quick Information

Product Type: Integrated Circuit
Canonical Name: ZLG7290CS Integrated Circuit
Subcategory: Interface Controller

ZLG7290CS Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZLG7290CS Features

  • I2C serial interface for easy processor connection.
  • Provides keyboard interrupt signals.
  • Controls scanning and blinking of display digits.
  • Supports multiple key press detection.
  • Directly drives LED displays without external components.

ZLG7290CS Applications

  • Ideal for user interface applications.
  • Suitable for devices with multiple button inputs.
  • Used in LED display control systems.
  • Enhances product functionality with integrated features.

ZLG7290CS FAQs

6 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the ZLG7290CS?

The ZLG7290CS operates at a nominal input voltage of 3.3V.

What is the operating temperature range of the ZLG7290CS?

The operational temperature range for the ZLG7290CS is -20°C to 130°C.

What package type is the ZLG7290CS available in?

The ZLG7290CS is available in a SOP-24 package.

What is the RoHS status of the ZLG7290CS?

The ZLG7290CS is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for the ZLG7290CS?

The Moisture Sensitivity Level (MSL) for the ZLG7290CS is 1 Unlimited.

What is the REACH status of the ZLG7290CS?

The REACH status of the ZLG7290CS is REACH Unaffected.
