Mfr Part #:

ZL9010MIRZ-T

Mfr Name: Renesas

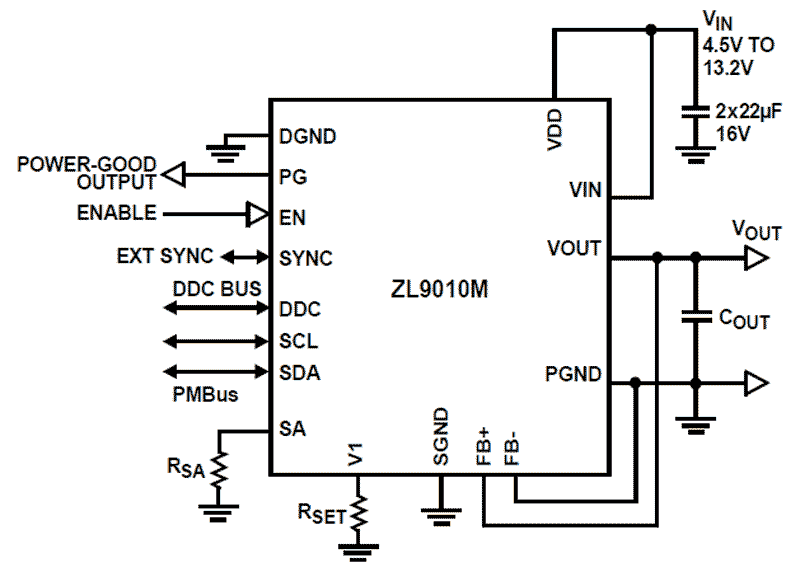

Renesas ZL9010MIRZ-T is a 10A digital DC/DC power module with PMBus interface. It provides adjustable output from 0.6V to 3.6V from a 4.5V to 13.2V input.

✓ Total Stock: 3,000 pcs

$ Price Range: $17.69

ZL9010MIRZ-T Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Flip Electronics ✓ Non-Authorised Inventory information	3,000 pcs On Request	3000 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

ZL9010MIRZ-T Description

Short technical summary and product information.

The Renesas ZL9010MIRZ-T is a non-isolated Point-of-Load (PoL) step-down digital power module delivering up to 10A continuous output. It integrates a digital PWM controller, power MOSFETs, inductor, and passive components into a compact 32-SMD module measuring 17.2mm x 11.5mm x 2.5mm. The module operates from a 4.5V to 13.2V input voltage and provides an adjustable output from 0.6V to 3.6V with ±1% regulation accuracy.

Digital control is implemented via a PMBus interface, enabling features such as output voltage programming, sequencing, current sharing, external synchronization, and Snapshot parametric capture. The device includes built-in auto-compensation algorithms, eliminating the need for manual compensation design. Protection features include overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).

The ZL9010MIRZ-T is surface-mountable and suitable for automated assembly. It is RoHS3 compliant and rated for operation from -40°C to 85°C. Applications include server, telecom, datacom, industrial, and medical equipment.

ZL9010MIRZ-T Quick Information

Product Type: DC DC Converter Module

Series: ZL9010M

Canonical Name: Renesas ZL9010MIRZ-T Non-Isolated PoL Module, Digital, 10A

Subcategory: Digital Power Module

ZL9010MIRZ-T Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 3

REACH Status: REACH Unaffected

ZL9010MIRZ-T Estimated Pricing

Qty	Low	High
1,000+	$17.69	$17.69

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZL9010MIRZ-T Features

Non-Isolated PoL digital power module.
10A continuous output current.
Adjustable output 0.6V to 3.6V.
PMBus compliant with digital control.
Integrated OCP, OTP, OVP, UVLO.

ZL9010MIRZ-T Applications

For server, telecom, and datacom equipment.
Used in industrial and medical systems.
Ideal for high-density point-of-load designs.
Suitable for applications requiring PMBus monitoring.

ZL9010MIRZ-T FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of ZL9010MIRZ-T?

4.5V to 13.2V.

What output voltage and current can ZL9010MIRZ-T provide?

Adjustable output from 0.6V to 3.6V at up to 10A (36W).

What package does ZL9010MIRZ-T come in?

32-SMD Module (surface mount), dimensions 17.2mm x 11.5mm x 2.5mm.

What is the operating temperature range?

-40°C to 85°C.

Does ZL9010MIRZ-T support digital control?

Yes, it features a PMBus digital interface and includes auto compensation, sequencing, and parametric capture.

What protection features does ZL9010MIRZ-T include?

Overcurrent (OCP), overtemperature (OTP), overvoltage (OVP), and undervoltage lockout (UVLO).

Is ZL9010MIRZ-T RoHS compliant?

It is marked as RoHS3 Compliant; however, the compliance certification has not been verified.

Category	DC DC Converters
Manufacturer Name	Renesas
Applications	ITE (Commercial)
Control Features	PMBus, External Synchronization, Current Sharing, Programmable Sequencing, Snapshot Parametric Capture
Current	10A
Features	OCP, OTP, OVP, UVLO
Height	2.5mm
Length	17.2mm
Medical Grade	Yes
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature	-40°C ~ 85°C
Output Power	36W
Tape & Reel	Yes
Type	Non-Isolated PoL Module, Digital
Voltage	4.5V
Width	11.5mm
