| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
111,900 pcs
|
111900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Duty Cycle (Max) | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| Serial Interfaces | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Renesas ZL6105ALAFT is an integrated circuit designed as a DC DC switching controller. It functions as a step-down buck regulator with a positive output configuration. This device supports a supply voltage range from 3V to 5V and operates at switching frequencies between 200kHz and 1.4MHz, with a maximum duty cycle of 95%.
Key control features include current limit, enable, power good, soft start, and tracking. Communication is handled via I2C, PMBus, and SMBus serial interfaces. The operating temperature range is -40°C to 85°C (TA).

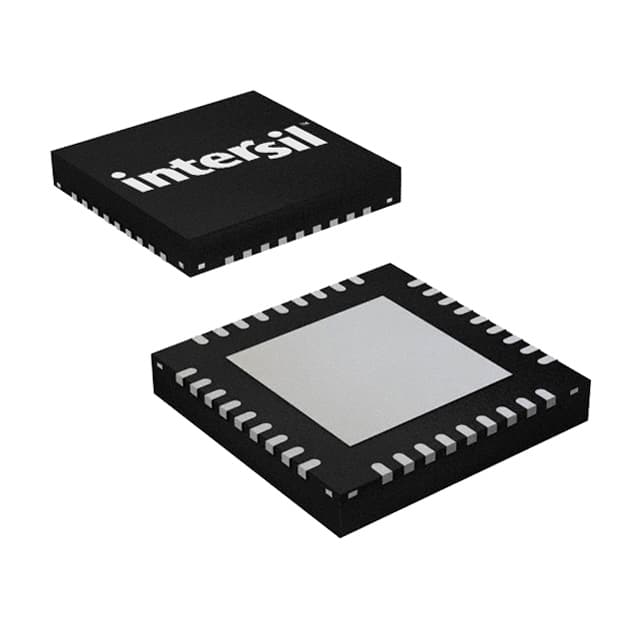

The ZL6105ALAFT is available in a 36-QFN (6x6) package, specifically a 36-VFQFN exposed pad. It is designed for surface mount applications and comes in tape and reel packaging. The component is classified under Integrated Circuits (ICs) and specifically within the PMIC - DC DC Switching Controllers category.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.78 | $0.78 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
3V to 5V.
36-VFQFN Exposed Pad (36-QFN 6x6mm).
-40°C to 85°C.
200kHz to 1.4MHz.
Yes.
I2C, PMBus, SMBus.
95%.
