ZL40294LDG6 The Microchip Technology ZL40294LDG6 is a 20-output clock buffer designed for high-performance applications. It operates at frequencies up to 250MHz with ultra-low additive jitter.
Mfr Part #:

ZL40294LDG6

Available from 1 distributors
Mfr Name: Microchip Technology
Microchip Technology
The Microchip Technology ZL40294LDG6 is a 20-output clock buffer designed for high-performance applications. It operates at frequencies up to 250MHz with ultra-low additive jitter.
✓ Total Stock: 10,055 pcs
$ Price Range: $4.44

ZL40294LDG6 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Rayichip ✓
Non-Authorised Inventory information
10,055 pcs
On Request
10055 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZL40294LDG6 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Differential
Frequency
Input
Mounting Type
Number of Circuits
Number of Outputs
Operating Temperature
Output
Package / Case
Ratio
Supplier Device Package
Tape & Reel
Type
Voltage
View Similar Products (0)

ZL40294LDG6 Description

Short technical summary and product information.

The Microchip Technology ZL40294LDG6 is a 20-output clock buffer, fully compliant with the Intel DB2000QL specification. It provides 20 low-power Push-Pull HCSL PCIe outputs and supports clock frequencies from 0 to 250MHz.



Key features include ultra-low additive jitter of 14fs typical in the DB2000QL band, a maximum output-to-output skew of 50ps, and support for 3.3V power supplies. The device incorporates an embedded Low Drop Out (LDO) Voltage regulator for superior power supply noise rejection. It also features an SMBus Interface, Side-Band Interface (SBI), and eight OE pins.



The ZL40294LDG6 is designed for applications such as PCI Express generation 1/2/3/4/5 clock distribution and Intel QPI. It is suitable for use in servers, storage and data centers, switches, and routers.

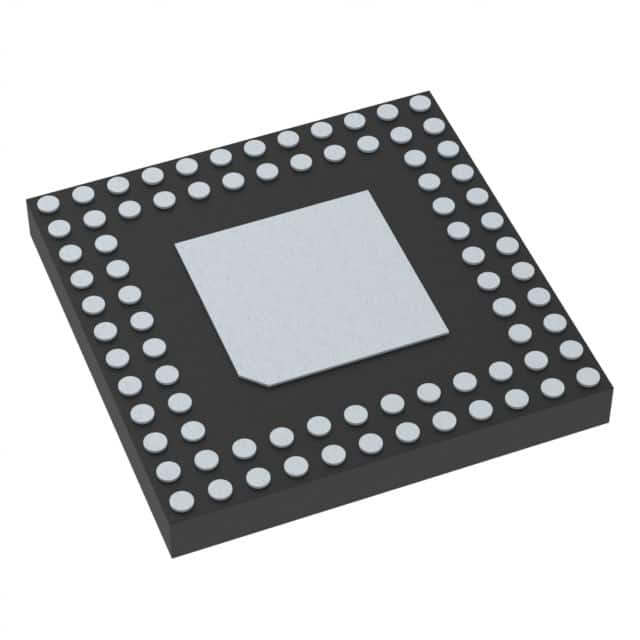

This component comes in an 80-pin GQFN package with a 6x6mm size and is designed for surface mounting. The operating temperature range is -40°C to +85°C.

ZL40294LDG6 Quick Information

Product Type: Clock Buffer
Canonical Name: ZL40294LDG6 20-Output DB2000QL Buffer
Subcategory: Clock Distribution

ZL40294LDG6 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZL40294LDG6 Estimated Pricing

Qty Low High
1+ $4.44 $4.44

Estimated market price range - modelled values for guidance only, not live distributor offers.

ZL40294LDG6 Features

  • 20 low-power Push-Pull HCSL PCIe outputs.
  • Ultra-low additive jitter of 14fs typical.
  • Supports clock frequencies from 0 to 250MHz.
  • Maximum output to output skew of 50ps.
  • Embedded Low Drop Out (LDO) Voltage regulator.

ZL40294LDG6 Applications

  • PCI Express generation 1/2/3/4/5 clock distribution.
  • Intel QPI clocking.
  • Server clock distribution.
  • Storage and data center clocking.
  • Switch and router clocking.

ZL40294LDG6 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the maximum clock frequency supported by the ZL40294LDG6?

The ZL40294LDG6 supports clock frequencies from 0 to 250MHz.

What type of outputs does the ZL40294LDG6 provide?

The ZL40294LDG6 provides 20 low-power Push-Pull HCSL PCIe outputs.

What is the operating voltage range for the ZL40294LDG6?

The ZL40294LDG6 operates within a voltage range of 3.135V to 3.465V.

What is the operating temperature range of the ZL40294LDG6?

The ZL40294LDG6 has an operating temperature range of -40°C to +85°C.

What is the package type for the ZL40294LDG6?

The ZL40294LDG6 is supplied in an 80-GQFN (6x6mm) package for surface mounting.
