| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | 1733 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Circuits | |
| Number of Outputs | |
| Operating Temperature | |
| PLL | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package |
The ZL30267LDG1 from Microchip Technology is a Clock/Timing Integrated Circuit designed for frequency synthesis applications. It supports a wide supply voltage range from 1.71V to 3.465V, with typical operating voltages of 1.8V, 2.5V, and 3.3V. This device offers a maximum input frequency of 1.25 GHz and can generate output frequencies up to 1045 MHz.
Key electrical characteristics include a maximum power dissipation of 1065mW and a jitter of 26 ps. The IC supports various output logic levels such as CMOS, HCSL, HSTL, LVDS, and LVPECL, and features 10 outputs. It operates within an ambient temperature range of -40°C to 85°C.

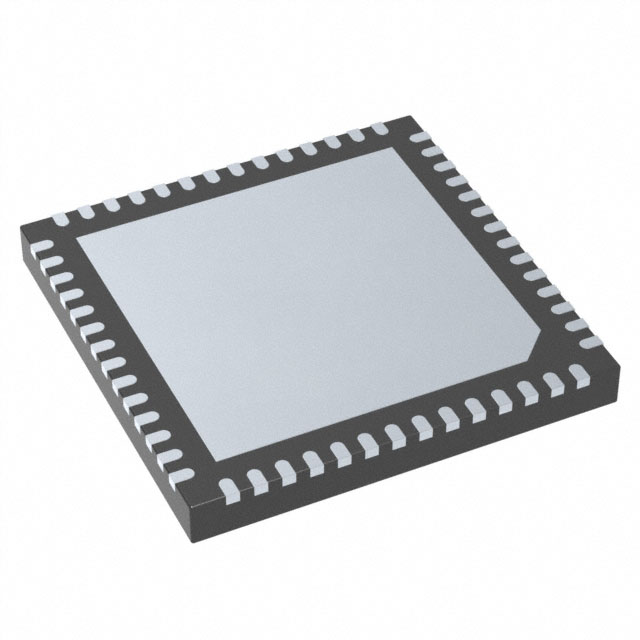

The ZL30267LDG1 is housed in a 56-VFQFN Exposed Pad package and is designed for surface mount applications. Its dimensions are 8mm in length and width, with a height of 0.88mm. The component is classified as RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 3 (168 Hours).
| Qty | Low | High |
|---|---|---|
| 1+ | $2.02 | $2.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating supply voltage range for the ZL30267LDG1 is 1.71V to 3.465V.
The maximum output frequency of the ZL30267LDG1 is 1045MHz.
The operating temperature range for the ZL30267LDG1 is -40°C to 85°C.
The ZL30267LDG1 is supplied in a 56-VFQFN Exposed Pad package.
The ZL30267LDG1 is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the ZL30267LDG1 is 3 (168 Hours).
