| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
708,000 pcs
|
708000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Differential | |
| Divider | |
| Frequency | |
| Input | |
| Input Frequency | |
| Input Type | |
| Mounting Type | |
| Number of Circuits | |
| Operating Temperature | |
| Output | |
| Output Frequency | |
| Output Voltage | |
| PLL | |
| Ratio | |
| Supplier Device Package | |
| Voltage |
The ZL30253LDG1 from Microchip Technology is an integrated circuit designed for clock generation, phase-locked loop (PLL) functions, and frequency synthesis. It supports input frequencies up to 1250MHz and output frequencies up to 1035MHz, with a typical output jitter of 0.16 to 0.28ps RMS.
This device features a programmable DPLL bandwidth ranging from 14Hz to 500Hz, capable of attenuating jitter. It offers flexible input options including CML, CMOS, and Crystal, and output types of CML and CMOS. The IC operates within a supply voltage range of 1.71V to 3.465V and has an operating temperature range of -40°C to +85°C.

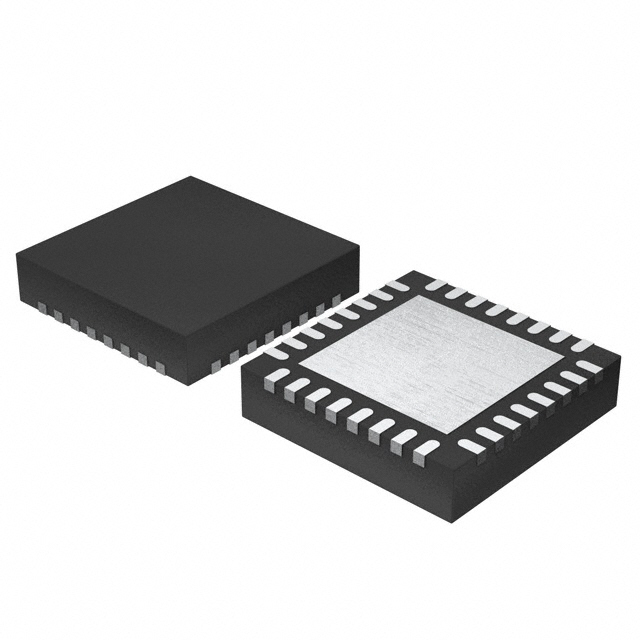

The ZL30253LDG1 is available in a 32-VFQFN Exposed Pad package, designed for surface mounting. Its input-to-output ratio is 4:3, and it includes divider and multiplier functions. The device also supports PLL with bypass functionality, making it suitable for various timing applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.01 | $7.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output frequency is 1035MHz.
The output jitter is typically 0.16 to 0.28ps RMS over a 12kHz-20MHz integration band.
The operating temperature range is -40°C to +85°C.
It requires a supply voltage between 1.71V and 3.465V.
It is supplied in a 32-VFQFN Exposed Pad package.
