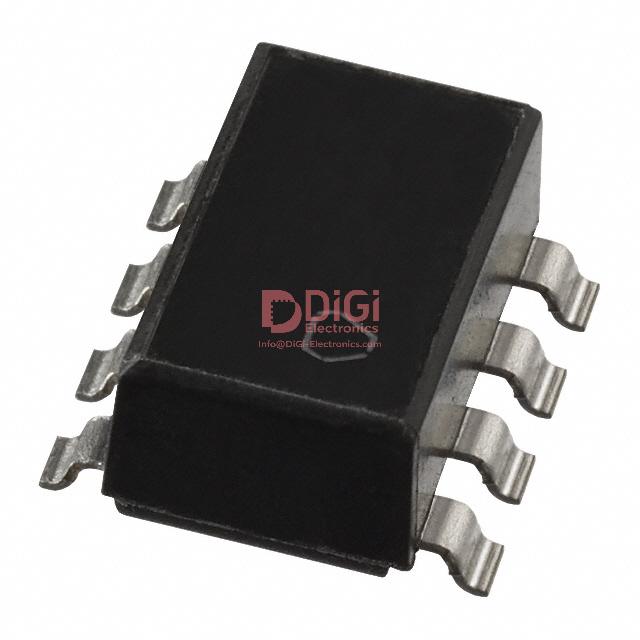

ZJYS51R5-4PT The TDK ZJYS51R5-4PT-01 is a 4-line common mode choke designed for signal line filtering. It features a 2A maximum current rating and 200 Ohm impedance at 100 MHz.
Mfr Part #:

ZJYS51R5-4PT

Available from 1 distributors
Mfr Name: NA
NA
The TDK ZJYS51R5-4PT-01 is a 4-line common mode choke designed for signal line filtering. It features a 2A maximum current rating and 200 Ohm impedance at 100 MHz.
✓ Total Stock: 950 pcs

ZJYS51R5-4PT Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
950 pcs
On Request
950 pcs On Request 1 On Request On Request 97/98+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

ZJYS51R5-4PT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current Rating
DC Resistance (DCR)
Duration
Filter Type
Height
Mounting Type
Number of Lines
Operating Temperature
Package / Case
Voltage Rating
View Similar Products (0)

ZJYS51R5-4PT Description

Short technical summary and product information.

The TDK ZJYS51R5-4PT-01 is a common mode choke designed for effective noise suppression in signal lines. This surface mount component offers a 4-line configuration, making it suitable for various electronic applications requiring EMI/RFI filtering.



Key electrical characteristics include a maximum current rating of 2A and an impedance of 200 Ohms at 100 MHz. The component operates within a temperature range of -25°C to 85°C and has a DC resistance of 120mOhm maximum. It is rated for up to 50V DC.



Packaged for surface mounting, the ZJYS51R5-4PT-01 has dimensions of 0.413" L x 0.270" W (10.50mm x 6.86mm) with a maximum height of 0.200" (5.08mm). Its horizontal, 8 Gull Wing package type facilitates integration into compact PCB designs.



This common mode choke is a reliable choice for engineers seeking to improve signal integrity and reduce electromagnetic interference in their designs.

ZJYS51R5-4PT Quick Information

Product Type: Common Mode Choke
Series: ZJYS51
Canonical Name: TDK ZJYS51R5-4PT-01 Common Mode Choke

ZJYS51R5-4PT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

ZJYS51R5-4PT Features

  • 4-line common mode choke for signal filtering.
  • 2A maximum current rating.
  • 200 Ohm impedance at 100 MHz.
  • Surface mountable with 8 Gull Wing package.
  • Rated for 50V DC operation.

ZJYS51R5-4PT Applications

  • Effective EMI/RFI noise suppression.
  • Ideal for signal line filtering.
  • Suitable for compact PCB designs.
  • Used in various electronic circuits.

ZJYS51R5-4PT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the ZJYS51R5-4PT-01 at 100 MHz?

The impedance is 200 Ohms at 100 MHz.

What is the maximum current rating for this common mode choke?

The maximum current rating is 2A.

What is the DC resistance of the ZJYS51R5-4PT-01?

The maximum DC resistance is 120mOhm.

What is the DC voltage rating?

The DC voltage rating is 50V.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

How many lines does this common mode choke filter?

It filters 4 lines.

What type of filter is the ZJYS51R5-4PT-01?

It is a signal line filter.
