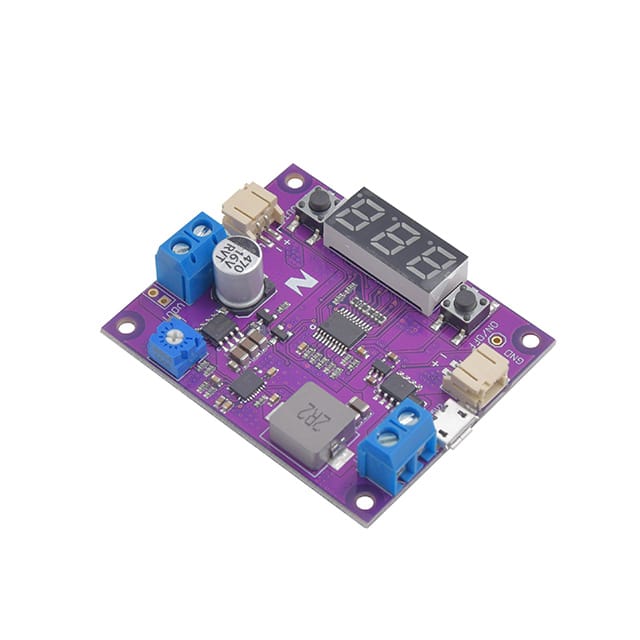

The Smart Prototyping ZIO-101917 is an adjustable DC-DC voltage booster designed for various applications. It features a wide input voltage range from 3.7V to 10V, allowing it to boost the voltage to any level between 5V and 12.5V.
This open-frame converter utilizes the TPS61088 Booster IC. The output voltage is precisely adjusted using an onboard potentiometer, accessible with a Phillips or 2mm flathead screwdriver. The board includes a 24-segment display that can show either the input or output voltage, controlled by a momentary switch. Another switch allows for toggling the output on and off.
With dimensions of 46.8 x 56.7mm and a weight of 20.7g, the ZIO-101917 is suitable for chassis mounting. It features multiple input connectors, including screw terminals, JST PH connectors, and a micro-USB connector, along with screw terminals and PTH pads for the output.
Note that this board is exclusively a booster and cannot regulate the input voltage to a lower level. It is designed for ITE (Commercial) applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.7V to 10V.
The output voltage range is 5V to 12.5V.
The Booster IC used is the TPS61088.
The dimensions are 46.8 x 56.7 mm.
The weight is 20.7g.
Output voltage is adjusted using a potentiometer.
No, this board can only boost and does not have the ability to regulate the input to a lower voltage.
